Board Layout Fit – 0.100" Pitch and 8 Circuits

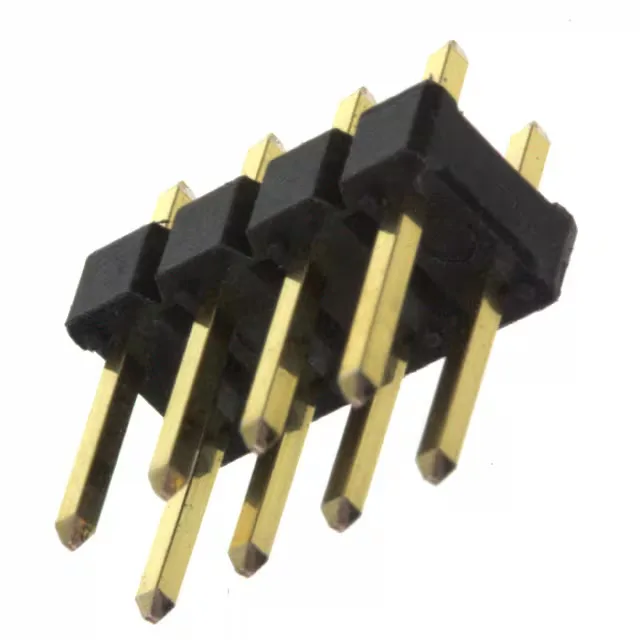

The 67996-108HLF: Eight positions loaded all, dual-row, means the connector occupies a 0.400" board edge length (4 × 0.100") — compact enough for dense signal I/O on a 2-layer board. The 0.230" (5.84 mm) mating pin length engages standard female headers with a 0.100" insulator height, leaving enough wipe for reliable contact under vibration.
Contact Rating and Plating – Signal-Duty Ceiling
The current limit is set by the 30 °C temperature rise through the phosphor bronze contact beam and UL94 V-0 housing.
Packaged in bags — typical for through-hole headers in moderate-volume production runs.
The 67996-108HLF sits at 8 positions in the BERGSTIK® II dual-row family. Siblings include the 67996-104HLF (4 positions) and 67996-110HLF (10 positions) — same pitch, plating, current rating, and overall contact length of 0.425" (10.80 mm). If the BOM calls for 8 circuits, this is the direct fit. For 4 or 10 circuits, the same footprint and electrical ratings apply — only the pin count changes.
