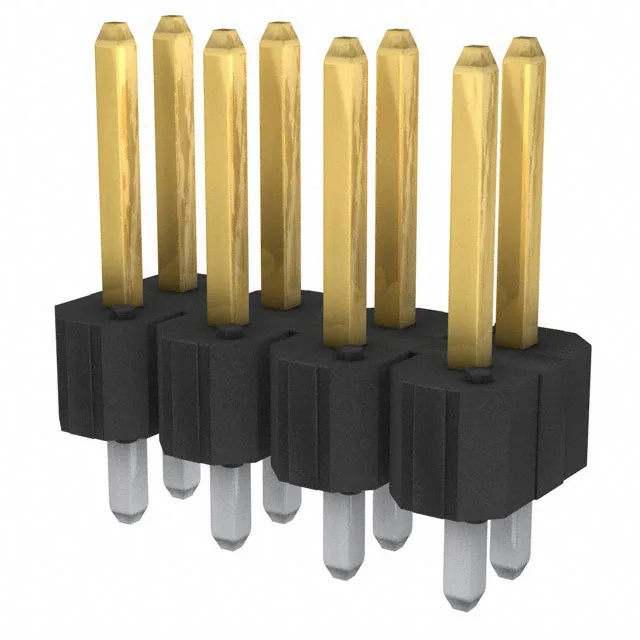

Amphenol ICC BERGSTIK II header, order code 67996-108HTLF, 8 positions, dual row, 0.100" (2.54 mm) pitch, 3 A per contact, gold-plated phosphor bronze mating contacts, through-hole, solder termination.
67996-108HTLF Amphenol ICC BERGSTIK II Header, 8 Pos, 0.100"
MPN67996-108HTLF
Active
Amphenol ICC BERGSTIK II header, order code 67996-108HTLF, 8 positions, dual row, 0.100" (2.54 mm) pitch, 3 A per contact, gold-plated phosphor bronze mating contacts, through-hole, solder termination.
$0.4836Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
All specifications
| Parameter | Value |
|---|---|
| Package | Tube |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.095\" (2.41mm) |
| Overall contact length | 0.425\" (10.80mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is 67996-108HTLF's listed style and series on this component line?
The 67996-108HTLF is classified as a Board-to-Board style connector from the BERGSTIK II series — a dual-row 2.54 mm pitch header family from Amphenol ICC.
What compliance documentation does this brand provide for 67996-108HTLF?
The housing carries a UL94 V-0 flammability rating, confirming the nylon material meets the minimum flame-retardance threshold for UL-recognized components — the full RoHS/REACH statement and any UL or IEC agency file numbers are confirmed against the manufacturer's official declaration at order time.
Where can I buy 67996-108HTLF and what is the lead time?
The 67996-108HTLF is sourced to order against an RFQ through independent distribution — no stock-holding or channel-authorization claim is made; availability and current lead time are confirmed when the quote is requested.
