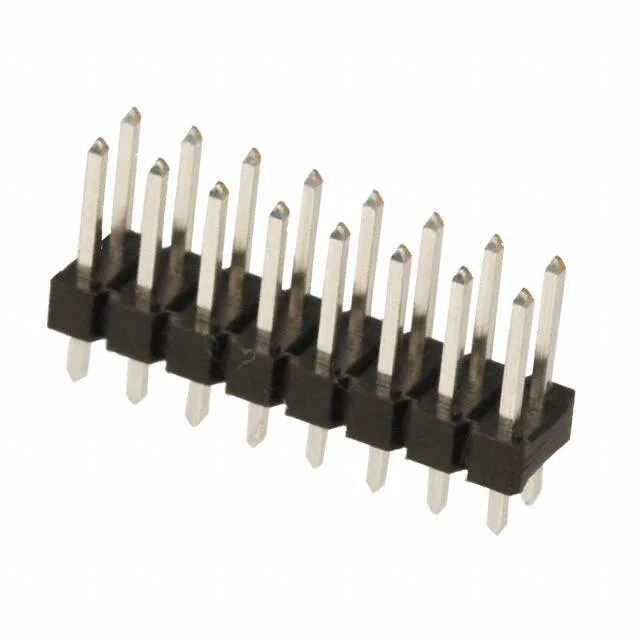

67996-416HLF BERGSTIK® II Header – 16 Pos, 2.54 mm Pitch

MPN67996-416HLF
Active

Amphenol ICC (FCI) BERGSTIK® II header, 67996-416HLF, unshrouded, through-hole, 16 positions, dual row, 0.100" (2.54 mm) pitch, tin-plated phosphor bronze contacts, rated 3 A per contact, UL94 V-0.

$0.6000Ref. price · indicative, final on quote
67996-416HLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

67996-416HLF Technical Specifications
ParameterValue
SeriesBERGSTIK® II
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typePush-Pull
Current rating3A per Contact
Operating temperature-65°C~125°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBag
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions16
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.095\" (2.41mm)
Overall contact length0.425\" (10.80mm)
Contact finish - matingTin
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

16-Position Dual-Row Unshrouded Header for Board-to-Board Interconnects

The 67996-416HLF: Rated at 3 A per contact, the tin-plated phosphor bronze contacts carry signal-level currents reliably. The unshrouded design keeps the profile low (0.100" insulation height) and allows easy access for probing or manual wiring, but offers less mechanical protection than a shrouded header. It is suited for board-to-board stacking where the mating receptacle provides the alignment.

Through-Hole Solder Termination and Board Layout Fit

Termination is through-hole solder, with a 0.095" (2.41 mm) post length for the solder tail. The square male pins are compatible with most 0.025" square-post receptacles. The 0.100" pitch and row spacing set the board footprint—confirm the mating receptacle's pin-out before layout.
