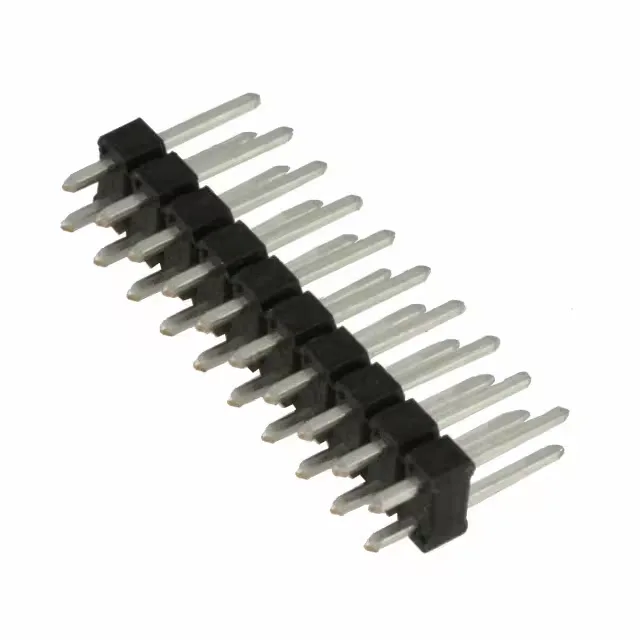

Amphenol ICC (FCI) BERGSTIK® II, 67996-420HLF, 20-position dual-row unshrouded header, 0.100" (2.54 mm) pitch, through-hole, tin-plated contacts, 3 A per contact, -65°C to 125°C, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Parameter | Value |
|---|---|
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.095\" (2.41mm) |
| Overall contact length | 0.425\" (10.80mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 67996-420HLF: Being unshrouded, this header has no polarisation key or locking latch — the mating receptacle relies on the push-pull fastening type. This is typical for board-to-board stacking where the connector pair is mechanically supported by the PCB standoffs.
The 67996-420HLF is sourced through independent distribution.
It is unshrouded — there is no plastic shroud around the pins.
Within the same BERGSTIK® II series, the 16-position 67996-416HLF and the 32-position 67996-432HLF share the same pitch, row spacing, tin plating, and 3 A rating.
