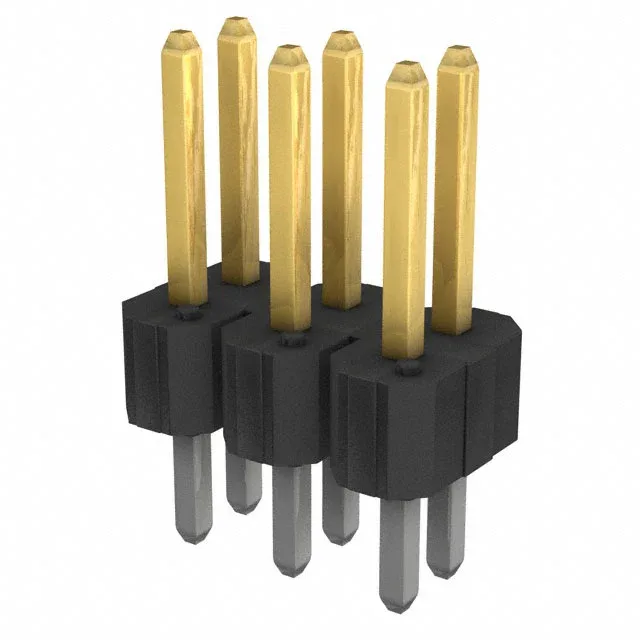

67997-106HLF — Amphenol product photo
Amphenol

67997-106HLF BERGSTIK® II Header, 6 Pos, 2.54mm Pitch, 3A

MPN67997-106HLF
Active

Amphenol ICC (FCI) BERGSTIK® II, 67997-106HLF, Board to Board, Header, Male Pin, 6 Positions, 0.100" (2.54mm) Pitch, Through Hole, Solder, Unshrouded, Black, 3A, UL94 V-0

$2.2500Ref. price · indicative, final on quote
67997-106HLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

67997-106HLF Technical Specifications
ParameterValue
SeriesBERGSTIK® II
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typePush-Pull
Current rating3A
Operating temperature-65°C~130°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBag
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions6
Row spacing - mating0.100\" (2.54mm)
Contact length - post0.120\" (3.05mm)
Overall contact length0.450\" (11.43mm)
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

0.100" Pitch, 6 Positions, 3 A — Board Footprint and Current Budget

30 µinch Gold — Mating Cycle Life for Field-Service Gear

Position Count vs Siblings — 6 vs 4, 8, or 14

Within the same 67997 base number, the 67997-106HLF sits between the 4-position 67997-104HLF and the 8-position 67997-108HLF. All share identical 0.100" pitch, dual-row layout, gold plating, and 3 A rating. The 14-position 67997-114HLF is the highest-count sibling in this group. The choice is purely a function of the required circuit count — the footprint scales linearly with position count.

Frequently asked questions

What is the pin configuration of 67997-106HLF?

It is a 6-position, dual-row header with all positions loaded. The pitch is 0.100" (2.54 mm) between pins and 0.100" between rows.

Is 67997-106HLF RoHS compliant?

Yes, the part is RoHS compliant per the manufacturer's listing.

How can I order 67997-106HLF or check stock?

This part is sourced per RFQ through independent distribution.
