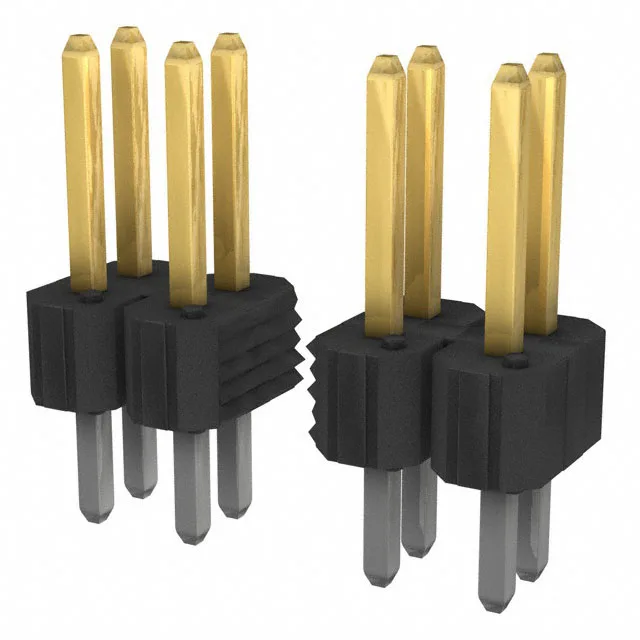

Amphenol ICC (FCI) BERGSTIK® II, 67997-138H, 38-position unshrouded header, 0.100" (2.54mm) pitch, dual-row, through-hole solder termination, 30.0µin gold-plated mating contacts, UL94 V-0 black housing.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 38 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.450\" (11.43mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 67997-138H: The push-pull fastening and black UL94 V-0 housing suit it for board-to-board stacking inside equipment that requires a flame-rated enclosure.
No stock-holding claim — sourced per request against the BOM quantity.
The mating pin length of 0.230" (5.84mm) provides enough reach for standard receptacles.
Yes, 67997-138H carries an Obsolete lifecycle status from Amphenol ICC (FCI).
The pitch is 0.100" (2.54mm) on both the mating interface and row spacing. It is a 38-position, dual-row header with all positions loaded.
No, it is an unshrouded header — the pins are exposed. This means no polarisation key; alignment relies on the mating receptacle during assembly.
