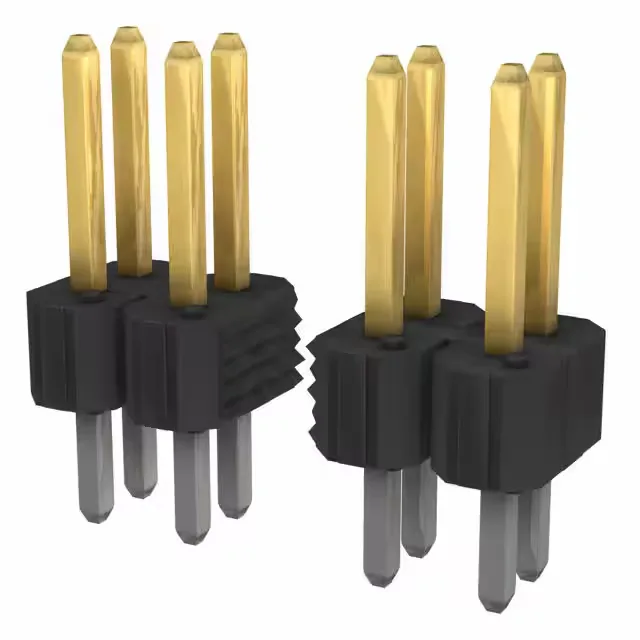

Amphenol ICC (FCI) BERGSTIK® II header, order code 67997-210HTLF, 10 positions, dual row, 0.100" (2.54mm) pitch, 3A, unshrouded, through-hole, solder termination, gold or GXT™ mating finish.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Parameter | Value |
|---|---|
| Package | Tube |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.450\" (11.43mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 67997-210HTLF is the 10-position member of Amphenol ICC (FCI)'s BERGSTIK II unshrouded header line, a board-to-board style connector. It carries gold or GXT™ mating finish on phosphor bronze contacts, rated 3 A per circuit, and mounts through-hole with solder termination.
The 67997-210HTLF is orderable under the listed part number.
The 67997-210HTLF is listed as a board-to-board style header.
