Board-to-board unshrouded header, 8 positions

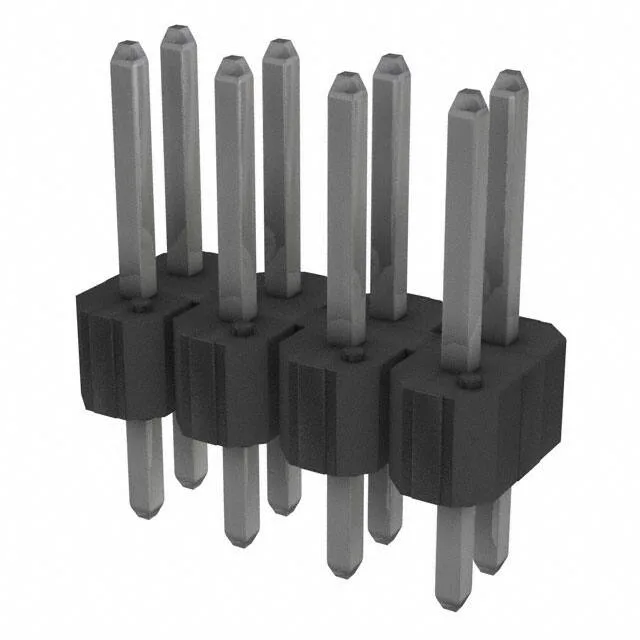

The 67997-408H is the 8-position, dual-row member of Amphenol ICC (FCI)'s BERGSTIK® II header line, configured as an unshrouded board-to-board male pin header.
67997-408H Amphenol ICC (FCI) BERGSTIK II Header, 8 Pos
MPN67997-408H
Obsolete
Amphenol ICC (FCI) BERGSTIK® II header, order code 67997-408H, 8 positions, dual row, 0.100" (2.54mm) pitch, through-hole, solder termination, tin-plated male pins, unshrouded, push-pull fastening.
$1.9800Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.450\" (11.43mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Product details
Frequently asked questions
What compliance documentation does Amphenol ICC (FCI) provide for 67997-408H?
RoHS and REACH compliance status is not confirmed in the available records.
