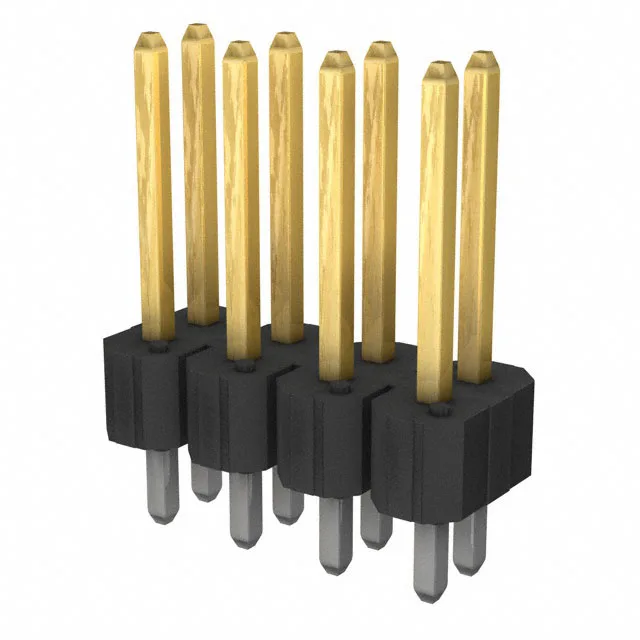

67998-108HLF — Amphenol product photo

Amphenol BERGSTIK® II 67998-108HLF Header, 8 Pos

MPN67998-108HLF
Active

Amphenol BERGSTIK® II, 67998-108HLF, 8 Position, 2 Row, 0.100" (2.54mm) Pitch, Unshrouded Header, Through Hole, Solder, 30.0µin Gold Plating, 5A, 110V.

$0.3609Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

67998-108HLF Technical Specifications
ParameterValue
SeriesBERGSTIK® II
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typePush-Pull
Voltage rating110V
Current rating5A
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBag
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions8
Row spacing - mating0.100\" (2.54mm)
Contact length - post0.107\" (2.71mm)
Overall contact length0.525\" (13.34mm)
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.318\" (8.08mm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

The Amphenol BERGSTIK® II 67998-108HLF is an 8-position, dual-row, unshrouded male pin header on a standard 0.100" (2.54mm) pitch — a workhorse board-to-board interconnect for prototype builds, test fixtures, and production runs where a reliable, low-cost pin header is called for. The 30.0µin (0.76µm) gold plating on the mating surface gives it a solid cycle life for repeated mating and unmating in a lab or field-service environment, while the tin solder tails take the rework heat without issue.

The 0.100" pitch is the de facto standard for 0.025" square pin headers — your board footprint is a 2 x 4 grid of 0.040" plated-through holes on that spacing, and it mates with any standard 0.100" pitch IDC socket or female header housing. The 5A per-contact rating is conservative for a phosphor bronze pin of this cross-section; at 25°C ambient you can run signal-level current without derating, and the UL94 V-0 black housing keeps it safe inside any equipment enclosure that requires a flammability rating. The 0.318" (8.08mm) mating pin length gives enough wipe for a positive contact in standard box headers or IDC receptacles.

No official replacement or cross-reference is on record; the 8-position, 0.100" pitch, 30µin gold spec is the fit check against your BOM.

Frequently asked questions

Is the 67998-108HLF available via RFQ confirmation or available to order?

Contact the storefront with your BOM for a same-day quote.

Does the 67998-108HLF require a mating connector?

As an unshrouded male pin header, it mates with any standard 0.100" pitch female socket or IDC receptacle housing — no proprietary mating half is required.
