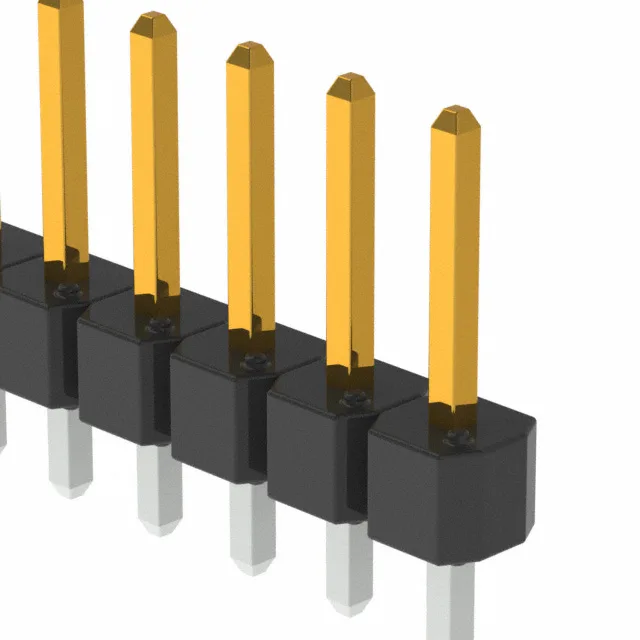

Amphenol ICC (FCI) BERGSTIK® II header, order code 68000-112H, 12 positions, single row, 0.100" (2.54 mm) pitch, 3 A per contact, gold or GXT™ mating contact finish, through-hole, solder termination.
68000-112H Amphenol ICC BERGSTIK II Header, 12 Pos 2.54mm
MPN68000-112H
Obsolete
Amphenol ICC (FCI) BERGSTIK® II header, order code 68000-112H, 12 positions, single row, 0.100" (2.54 mm) pitch, 3 A per contact, gold or GXT™ mating contact finish, through-hole, solder termination.
$0.5091Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
All specifications
| Parameter | Value |
|---|---|
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Contact length - post | 0.095\" (2.41mm) |
| Overall contact length | 0.425\" (10.80mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
How do I get current pricing and availability for 68000-112H?
Quoted to order against the BOM quantity. Availability is confirmed at RFQ through independent surplus channels.
