The 68001-120HLF: At 3 A per contact in a 20-position header, the total current capacity is 60 A if all circuits are loaded — but the practical limit is lower because the temperature rise from adjacent pins adds up. In a production test fixture cycled daily, that is roughly two years of service at the contact interface before wear-through.

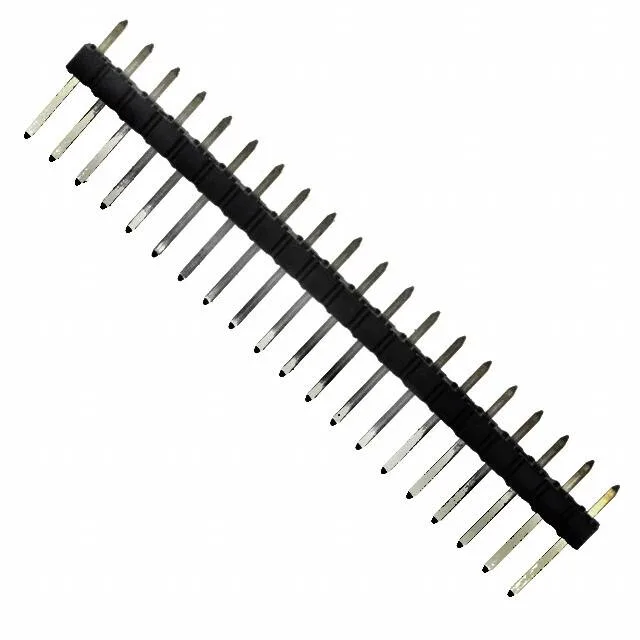

68001-120HLF 20-Pos 2.54 mm Unshrouded Header
MPN68001-120HLF
Active
Amphenol ICC (FCI) BERGSTIK® II, 68001-120HLF — 20-position, single-row unshrouded pin header, 0.100" (2.54 mm) pitch, 3 A per contact, 30 µinch gold mating finish, through-hole solder termination, UL 94 V-0 black housing.
$1.4300Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesBERGSTIK® II
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
All specifications
| Parameter | Value |
|---|---|
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.450\" (11.43mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the closest alternative to 68001-120HLF within the same series?
The 68001-113HLF (13 positions) is the nearest peer — same pitch, plating, current rating, and housing.
