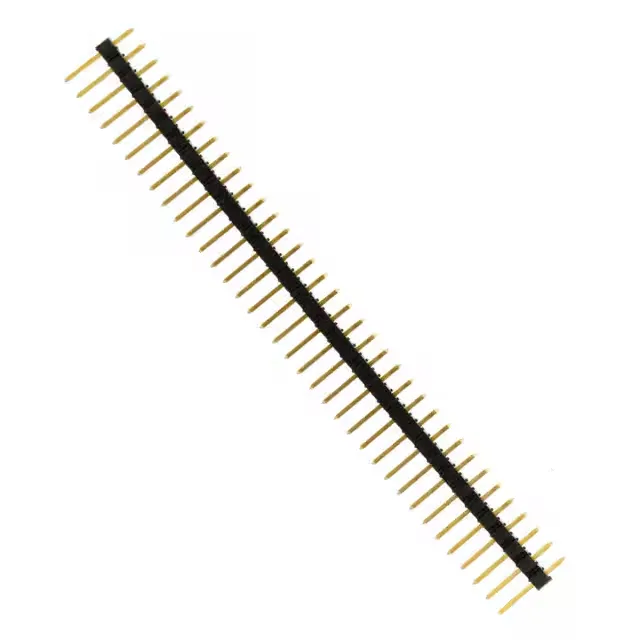

Amphenol ICC (FCI) BERGSTIK® II unshrouded vertical header, 36 positions, 0.100" (2.54mm) pitch, through-hole solder termination, 3A per contact, 15µin gold or GXT™ mating finish.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 36 |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.450\" (11.43mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 68001-236HLF: Rated 3A per contact with a UL94 V-0 black housing, the header suits signal-level interconnects in industrial controls, test equipment, and computing backplanes where the board-to-board or wire-to-board connection stays mated during operation.
The mating surface carries 15µin (0.38µm) gold or gold GXT™ over nickel — a common plating stack for 500+ mating cycles in clean environments.
The pitch is 0.100" (2.54mm), single row, 36 positions.
