The 68001-436HLF: The push-pull fastening type means it relies on friction retention from the receptacle contacts — no latch. For a 36-position row, the cumulative retention force is substantial; the board should be supported during unmating to avoid lifting pads.
68001-436HLF BERGSTIK® II Header, 36 Pos, 2.54 mm Pitch, Tin
MPN68001-436HLF
Active
Amphenol ICC (FCI) BERGSTIK® II, 68001-436HLF, 36 Position, 0.100" (2.54 mm) Pitch, Unshrouded, Tin, Through Hole, 3 A per Contact, UL94 V-0
$2.1200Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesBERGSTIK® II
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |

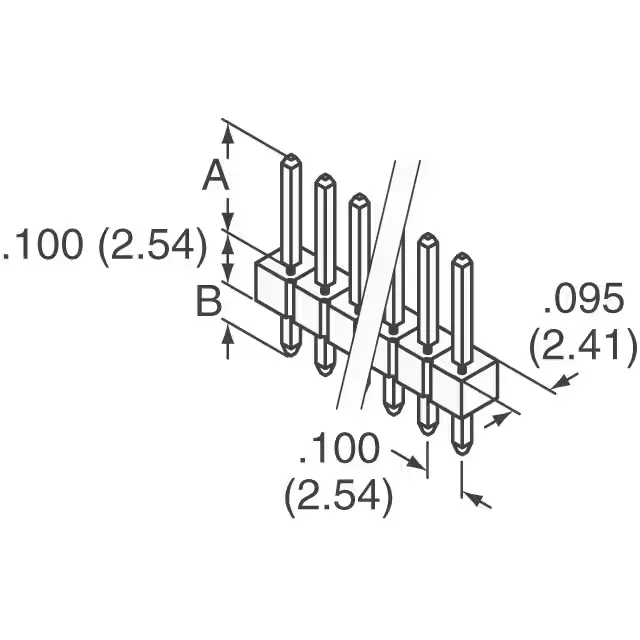

| Pitch | 0.100\" (2.54mm) |
| Positions | 36 |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.450\" (11.43mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Product details
Frequently asked questions
Where can I buy 68001-436HLF and what is the lead time?
We source this active-production part through independent distribution. Submit an RFQ with your target quantity; we confirm availability and current pricing at quote time.
What is the mating connector for 68001-436HLF?
Common mates include Amphenol ICC (FCI) BERGSTIK® II socket strips or 3M D-sub socket connectors with the same pitch.
