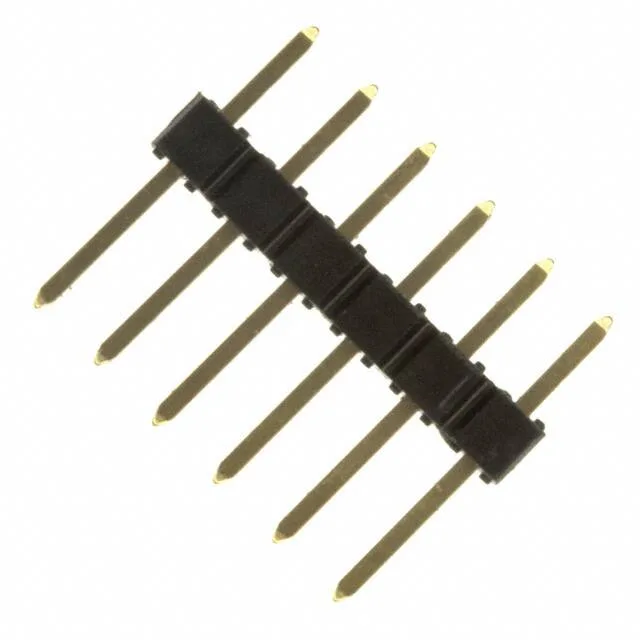

68002-106HLF — Amphenol product photo
Amphenol

68002-106HLF BERGSTIK II Header, 6-Pos, 0.100" Pitch, 3 A

MPN68002-106HLF
Active

Amphenol ICC (FCI) BERGSTIK® II, 68002-106HLF — 6-position, 1-row, unshrouded male pin header, 0.100" (2.54 mm) pitch, through-hole solder termination, 30.0 µinch gold mating finish, rated 3 A per contact.

$0.6300Ref. price · indicative, final on quote
68002-106HLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

68002-106HLF Technical Specifications
ParameterValue
SeriesBERGSTIK® II
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typePush-Pull
Current rating3A
Operating temperature-65°C~130°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBag
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions6
Contact length - post0.150\" (3.81mm)
Overall contact length0.480\" (12.19mm)
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Pitch, Positions, and Board Footprint

The 68002-106HLF: Phosphor bronze contacts with a square pin profile — the square cross-section gives a consistent interference fit in the receptacle's tuning-fork or box contact.

RoHS compliant.

Comparing Across the BERGSTIK II Family

The 68001-106HLF is the same 6-position, single-row layout but with a shorter overall contact length of 0.450" (11.43 mm). That 0.030" difference in the mating pin length means it may not reach the same receptacle depth — verify stack height before substituting.

Frequently asked questions

What is the closest functional second-source to 68002-106HLF?

Within the same BERGSTIK II series, the 68002-103HLF is identical in pitch, plating, and contact length but has only 3 positions.

Does 68002-106HLF have a datasheet with pinout?

The pinout is a single row of 6 pins on 0.100" centers — no keying or polarization since it is unshrouded. The datasheet from Amphenol ICC (FCI) covers the full BERGSTIK II series; the dimensional drawing shows the 0.230" mating pin length and 0.150" post length.
