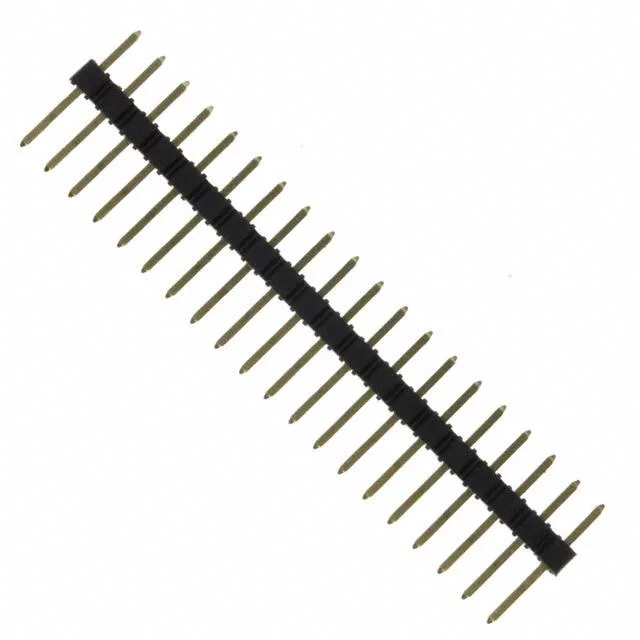

Amphenol ICC (FCI) BERGSTIK® II, 68002-120HLF, 20-position unshrouded header, 0.100" (2.54mm) pitch, through-hole solder termination, gold-plated square pins, 3 A per contact, UL94 V-0 black housing.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Parameter | Value |
|---|---|
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Contact length - post | 0.150\" (3.81mm) |
| Overall contact length | 0.480\" (12.19mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 68002-120HLF: The square male pins are phosphor bronze, terminated via through-hole solder.
The through-hole termination requires the board to have plated through-holes at the 0.100" pitch; the 0.150" (3.81mm) post length provides enough stand-off for solder fillet formation. In vibration-prone applications, consider a mating half with a locking ramp or secondary retention.
The unshrouded design means no polarisation key — alignment is visual.
The 68001-220HLF is a direct alternative with 20 positions and 15.0µin gold plating instead of 30.0µin. For lower position counts, the 68002-103HLF (3 pos) and 68001-113HLF (13 pos) share the same pitch and current rating.
