25-Pin Single-Row Header – Board Fit and Routing
The 68002-125HLF: Operating range spans -65°C to 130°C, covering outdoor telecom cabinets and industrial enclosures where ambient temperatures swing hard.

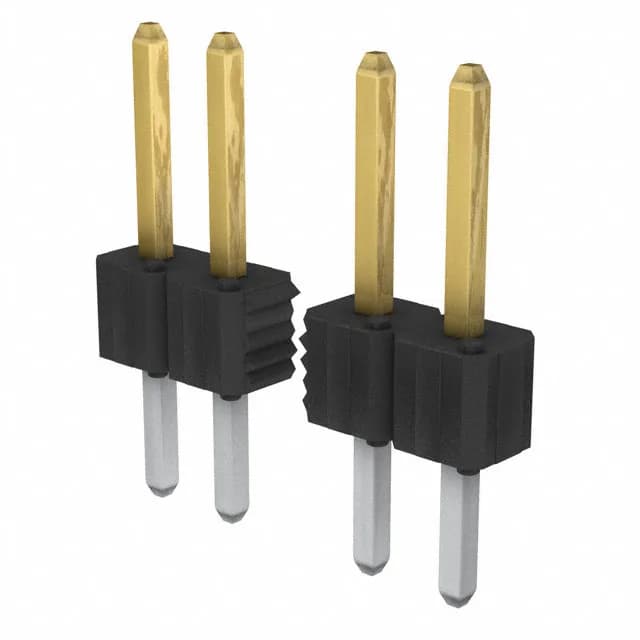

Amphenol ICC (FCI) BERGSTIK® II unshrouded header, 25 positions, single row, 0.100" (2.54 mm) pitch, through-hole solder termination, 30 µinch gold on mating face, rated 3 A per contact, UL94 V-0
$2.5310Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Number of rows | 1 |
| Pitch - mating | 0.100\" (2.54mm) |
| Positions | 25 |
| Contact length - post | 0.150\" (3.81mm) |
| Overall contact length | 0.480\" (12.19mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Number of positions loaded | All |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
Where can I buy 68002-125HLF?
Sourced through independent distribution against your BOM quantity. Submit an RFQ for current pricing and availability — confirmed at quote time, not a stock-holding promise.
Can 68002-125HLF be used with 2.54 mm female connectors?
Confirm the mating half has 25 positions and a single-row layout.
