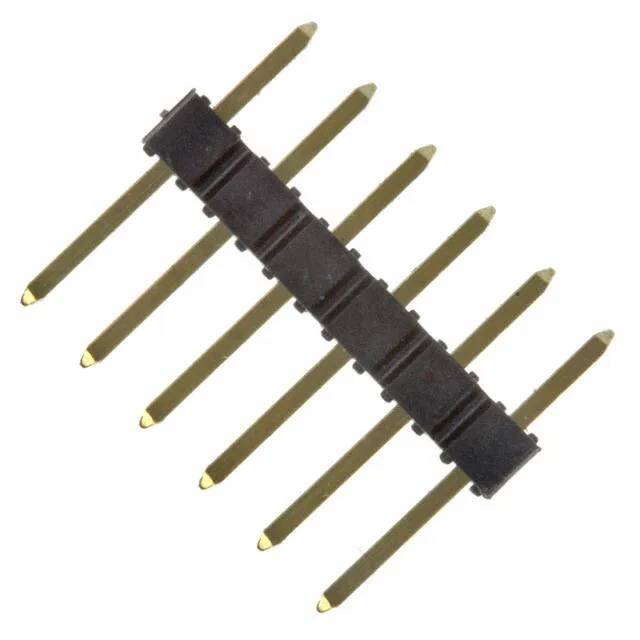

68002-206HLF — Amphenol product photo
Amphenol

68002-206HLF Amphenol ICC BERGSTIK II Header 6 Pos 2.54 mm

MPN68002-206HLF
Active

Amphenol ICC (FCI) BERGSTIK® II, 68002-206HLF – unshrouded male pin header, 6 circuits, single row, 0.100" (2.54 mm) pitch, through-hole solder termination, 3 A per contact, 15.0 µin gold mating finish, UL94 V-0 black housing.

$0.3500Ref. price · indicative, final on quote
68002-206HLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

68002-206HLF Technical Specifications
ParameterValue
SeriesBERGSTIK® II
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typePush-Pull
Current rating3A
Operating temperature-65°C~130°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBag
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions6
Contact length - post0.150\" (3.81mm)
Overall contact length0.480\" (12.19mm)
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

The 68002-206HLF: RoHS compliant.

The closest peer is the 68002-205HLF — identical in every dimension and rating except circuit count: 6 positions here vs 5 on the sibling. If your BOM calls for 5 circuits, the 68002-205HLF saves one unused pin; if you need 6, this is the one. Another alternative is the 68000-206HLF, which shares the same 6-position count and pitch but has a shorter overall contact length of 0.425" (10.80 mm) — check your board stack-up height before substituting.

No keying or locking latch, so the connection relies on the receptacle's retention. Square 0.025" (0.64 mm) pins accept a wide range of crimp terminals and IDC contacts.

Frequently asked questions

What is the closest functional second-source to 68002-206HLF?

The 68002-205HLF is identical except for position count — 5 positions vs 6. If your board layout can accommodate one fewer circuit, the 205HLF is a direct drop-in. The 68000-206HLF shares the same 6 positions but has a shorter overall contact length (0.425" vs 0.480").
