The 68002-236HLF: The through-hole solder termination (0.150" post length) suits wave-solder or hand-solder assembly; the 0.100" insulation height keeps the pin standoff consistent for mating with standard IDC or crimp receptacles.

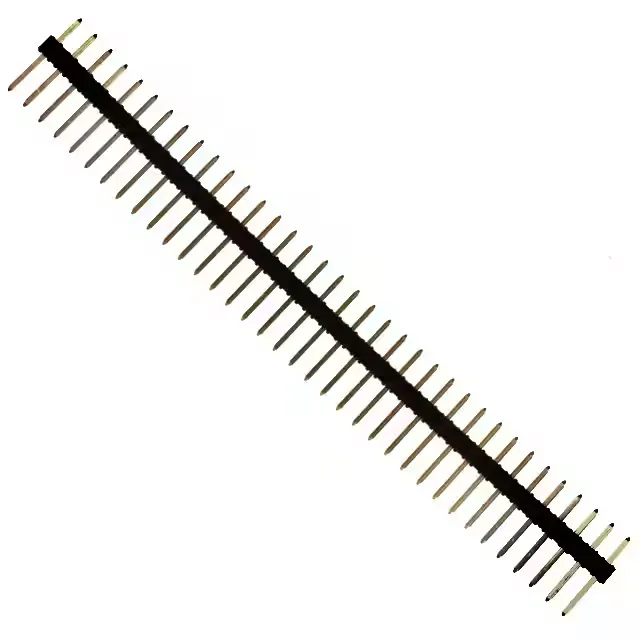

68002-236HLF – Amphenol ICC BERGSTIK II Header 36 Pos 2.54
MPN68002-236HLF
Active
Amphenol ICC (FCI) BERGSTIK® II unshrouded header, 36 positions, single row, 0.100" (2.54 mm) pitch, through-hole solder termination, 15.0 µinch gold mating surface, rated 3 A per contact, UL94 V-0 black housing.
$1.7200Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesBERGSTIK® II
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
All specifications
| Parameter | Value |
|---|---|
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 36 |
| Contact length - post | 0.150\" (3.81mm) |
| Overall contact length | 0.480\" (12.19mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
Is 68002-236HLF the correct header for a 36-position 2.54 mm design?
The footprint matches standard 0.100" grid receptacles. Verify the mating half is also unshrouded and keyed for push-pull fastening.
