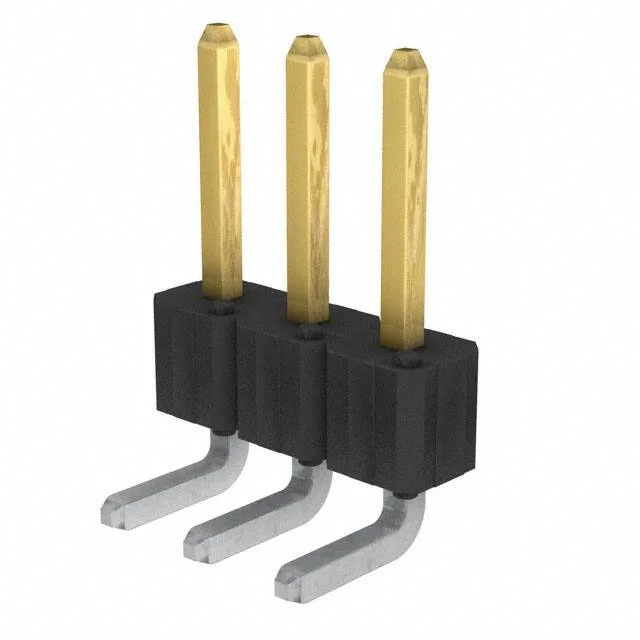

68015-103HLF — Amphenol product photo
Amphenol

68015-103HLF BERGSTIK® II Header – 3-Pos, 2.54mm

MPN68015-103HLF
Active

Amphenol ICC (FCI) BERGSTIK® II, 68015-103HLF – unshrouded header, 3 positions, 0.100" (2.54 mm) pitch, through-hole right-angle, male pin, 3 A per contact, 30.0 µinch gold mating finish, UL94 V-0 black housing.

$0.4000Ref. price · indicative, final on quote
68015-103HLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

68015-103HLF Technical Specifications
ParameterValue
SeriesBERGSTIK® II
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Current rating3A per Contact
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.095\" (2.41mm)
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBag
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions3
Contact length - post0.090\" (2.29mm)
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Right-Angle 3-Position Header – 2.54 mm Pitch, 30 µinch Gold

The 68015-103HLF: Phosphor bronze contacts with a square pin profile provide consistent normal force over the service life.

Board Fit and Routing – Right-Angle Orientation

Peer Comparison – Position Count and Plating Options

Within the same BERGSTIK® II right-angle, single-row family, the 68016-106HLF offers 6 positions with identical 30.0 µinch gold plating. For a lower-cost signal path, the 68016-204HLF uses 15.0 µinch gold at 4 positions — the thinner plating reduces cycle life but is adequate for low-mate applications. The 68016-116HLF provides 16 positions at the same 30.0 µinch gold grade, suiting wider bus interfaces.

Frequently asked questions

What is the closest functional alternative to 68015-103HLF?

The 68016-106HLF is a direct sibling — same pitch, plating, and right-angle orientation, but with 6 positions instead of 3. For a lower-cost option with fewer mating cycles, the 68016-204HLF uses 15.0 µinch gold at 4 positions.

What connector mates with 68015-103HLF?

The push-pull retention relies on friction fit — no locking latch.
