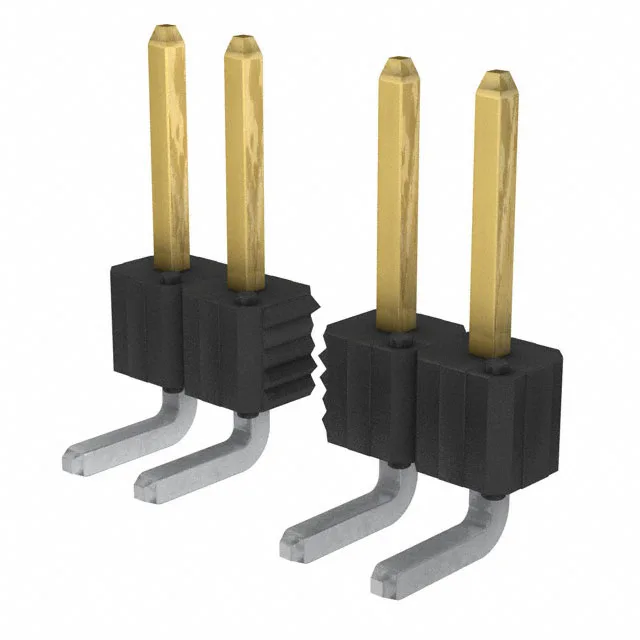

Amphenol ICC (FCI) BERGSTIK® II, 20-position unshrouded male pin header, 0.100" (2.54 mm) pitch, through-hole right-angle termination, 3 A per contact, 15.0 µinch gold mating finish.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.095\" (2.41mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Parameter | Value |
|---|---|
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Contact length - post | 0.090\" (2.29mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 68015-220HLF: The push-pull fastening type means the mate is held by friction and the receptacle's latch, not a locking ramp. Right-angle orientation means the pins exit the board edge parallel to the plane, so the connector body sits flush against the board edge; plan the keep-out zone accordingly.
