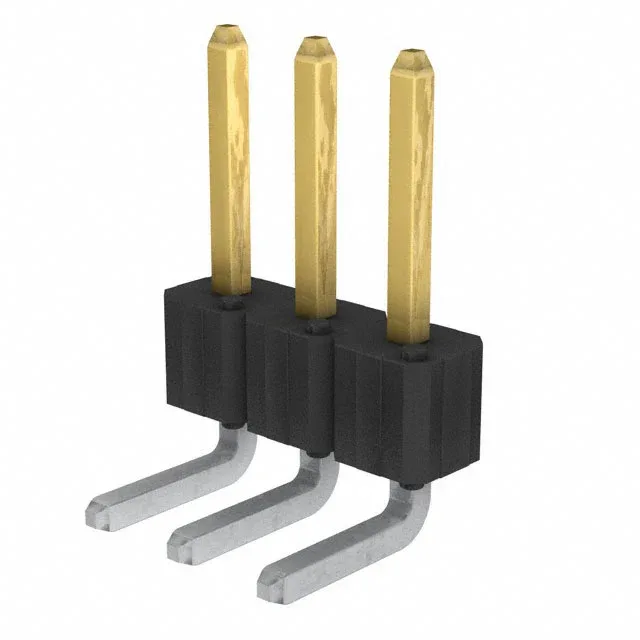

Amphenol ICC (FCI) BERGSTIK® II, 68016-103HLF — 3-position single-row unshrouded header, 0.100" (2.54mm) pitch, through-hole right-angle, 3A per contact, 30µin gold or GXT™ mating finish, UL94 V-0 black housing.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.095\" (2.41mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 3 |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 68016-103HLF: The through-hole solder termination provides a robust mechanical anchor for the three square pins.
The operating range spans -65°C to 130°C, covering automotive underhood and industrial cabinet environments without derating.
In a vibration environment, a mating housing with a locking ramp is recommended to prevent back-out.
3A per contact at the listed operating temperature range. Derate above 130°C per the series derating curve.
