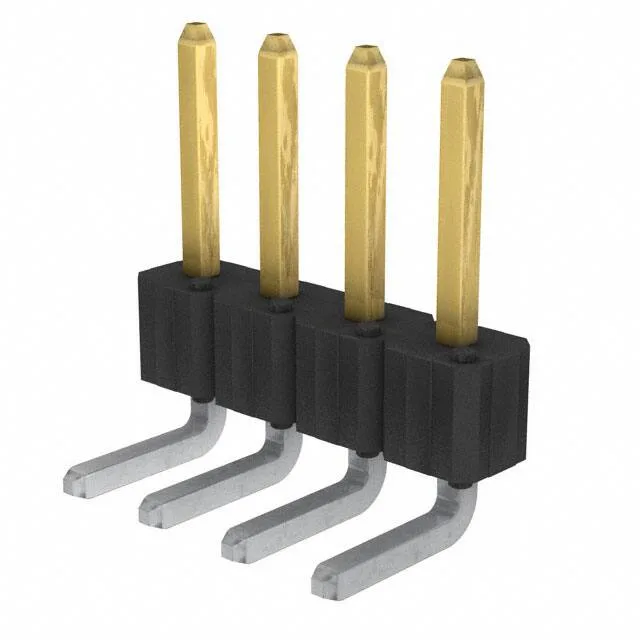

Amphenol ICC (FCI) BERGSTIK® II, 68016-204HLF, 4-position single-row unshrouded header, 0.100" (2.54mm) pitch, right-angle through-hole, male pin, 3A, 15µin gold mating finish, UL94 V-0 black housing.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.095\" (2.41mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Parameter | Value |
|---|---|
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 68016-204HLF: If your application calls for frequent reconnection (field-service panels, test fixtures), the sibling 68016-106HLF carries 30.0µin gold and doubles the cycle life margin at the same 6-position count and pitch.
This part is sourced through our independent distribution network. It is quoted to order against your BOM quantity — no stock-holding claim, no fixed price on the page. Submit an RFQ for current availability and pricing.
