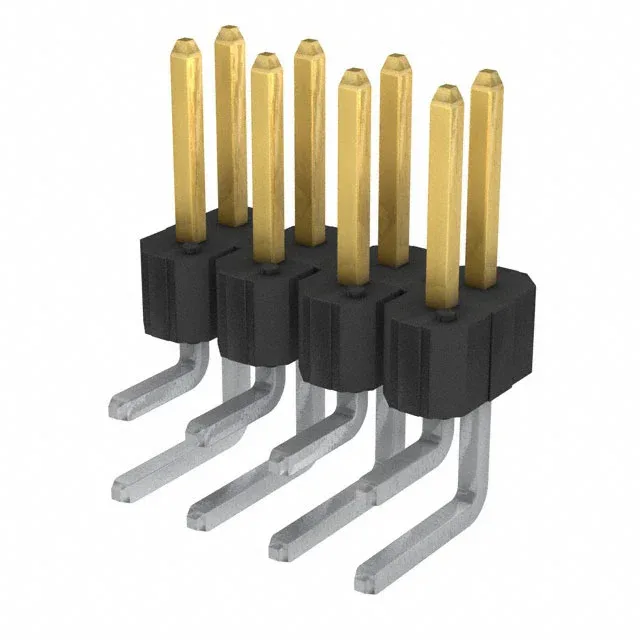

Amphenol ICC (FCI) BERGSTIK® II header, order code 68020-108HLF, 8 positions, dual row, 0.100" (2.54mm) pitch, 3A per contact, 30.0µin gold GXT™ mating contact, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.190\" (4.83mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Parameter | Value |
|---|---|
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.095\" (2.41mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 68020-108HLF is the 8-circuit member of Amphenol ICC's BERGSTIK II right-angle unshrouded header line. It carries 30.0µin gold GXT™ mating contacts rated 3A per contact and mounts through-hole right-angle with solder termination.
The 68021-208HLF shares the same 8-position, 2-row, 0.100" pitch, and right-angle through-hole mounting but uses 15.0µin gold GXT™ plating versus the 30.0µin on the 68020-108HLF.
