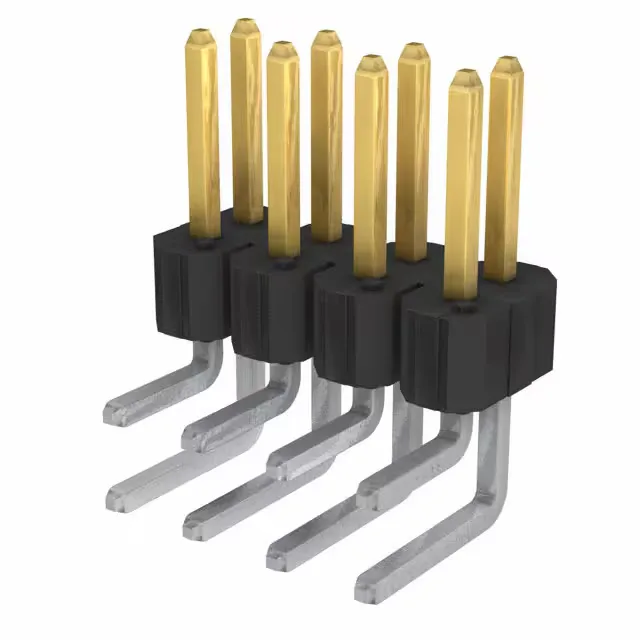

Amphenol ICC (FCI) BERGSTIK® II, 68021-208HLF, 8 Position Header, 0.100" (2.54mm) Pitch, Through Hole, Right Angle, Unshrouded, 3A per Contact, Gold or Gold GXT™ Mating Finish
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 110V |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.190\" (4.83mm) |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 68021-208HLF: Rated 3A per contact at the listed voltage rating of 110V.
The 68021-208HLF sits between the 6-position 68021-206HLF and the 10-position 68021-210HLF — same pitch, same plating, same right-angle form factor.
The 68021-206HLF (6 positions) and 68021-210HLF (10 positions) share the same 0.100" pitch, right-angle orientation, gold plating, and active status. Choose based on your required I/O count.
Yes. It is a through-hole, right-angle header with an unshrouded design, meaning the pins are exposed after soldering. This suits board-edge routing where the header mates with a receptacle or socket.
