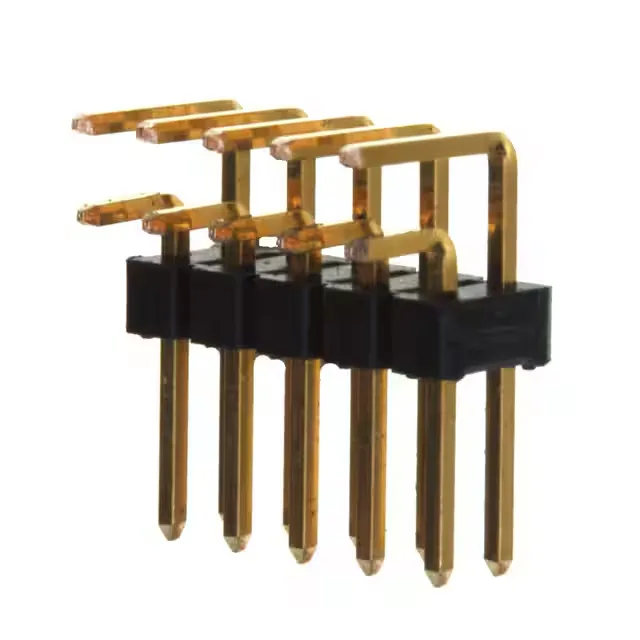

Amphenol ICC (FCI) BERGSTIK® II, 68021-210HLF, unshrouded pin header, 10 positions, 2 rows, 0.100" (2.54 mm) pitch, right-angle through-hole solder termination, 3 A per contact, 15.0 µin gold or GXT™ mating finish, UL94 V-0 black housing.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 110V |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.190\" (4.83mm) |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 15.0 µinch (0.38 µm) gold or GXT™ over nickel on the mating face is the entry-level gold thickness for reliable repeated mating — rated for 200–500 cycles depending on the mating half.
No keying — confirm the receptacle's polarisation method for your application.
