Through-hole right-angle termination
The 68021-304HLF is the 4-circuit member of Amphenol ICC (FCI)'s BERGSTIK II unshrouded header line, terminated through-hole right-angle for board-edge or parallel-to-PCB routing.

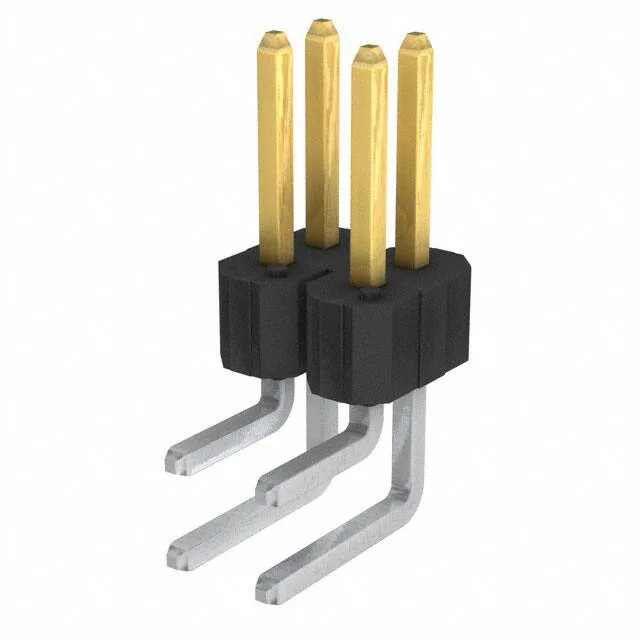

68021-304HLF Amphenol ICC (FCI) BERGSTIK II Header
MPN68021-304HLF
Active
Amphenol ICC (FCI) BERGSTIK® II header, order code 68021-304HLF, 4 positions, dual row, 0.100" (2.54 mm) pitch, 3 A per contact, 110 V, gold or GXT™ mating contacts, through-hole right-angle, solder termination.
$0.8652Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 110V |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.190\" (4.83mm) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 50.0µin (1.27µm) |
