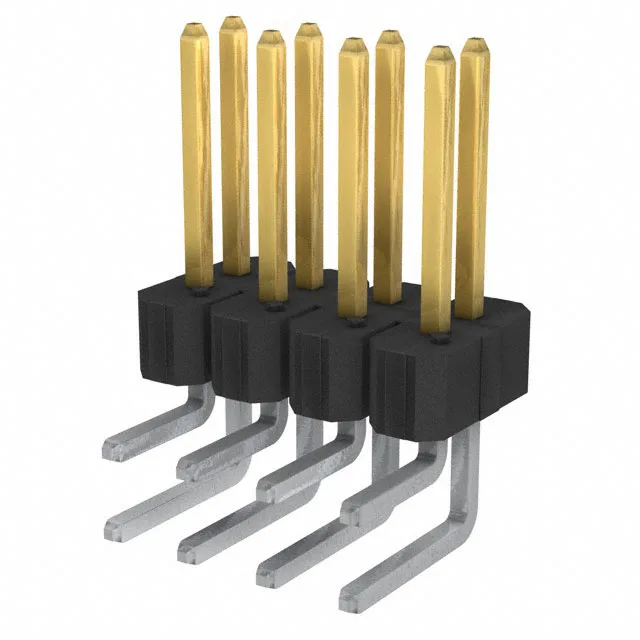

The Amphenol 68022-108HLF is an 8-position, dual-row unshrouded header from the BERGSTIK® II series, designed for board-to-board interconnect where a right-angle through-hole footprint is needed. The 0.100" (2.54 mm) pitch and 0.100" row spacing match the standard legacy grid, so the board layout is straightforward — confirm the hole pattern against your existing footprint. Rated 5 A per contact at 110 V, with gold or GXT™ plating at 30.0 µin (0.76 µm) on the mating surface, this connector is built for repeated mating cycles in signal or low-power distribution duty.
Right-angle fit for board-edge routing
The right-angle orientation places the pin tails parallel to the board surface — useful when the mating cable or board needs to exit along the PCB plane rather than straight up. The unshrouded design means there is no plastic wall around the pins, so the mating connector must be aligned by the pin pattern alone; pin 1 identification on the silkscreen is critical for correct orientation. The 0.318" (8.08 mm) mating pin length gives enough reach for standard receptacles, and the 0.110" (2.79 mm) solder tail length suits typical 0.062" board thicknesses.
This part carries an active lifecycle status — the factory continues production, so there is no last-time-buy pressure or forced surplus sourcing.
