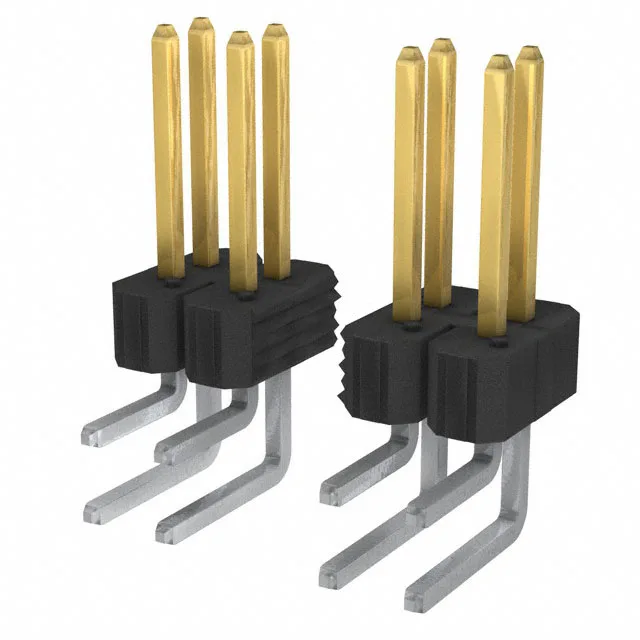

68022-272 BERGSTIK II Header, 72 Pos, 0.100" Pitch, RA

MPN68022-272
Active

Amphenol ICC (FCI) BERGSTIK® II, 68022-272, unshrouded male pin header, Board to Board, 72 positions, 2 rows, 0.100" (2.54mm) pitch, Through Hole, Right Angle, Solder termination, Gold or GXT™ mating finish, 5A, 110V, UL94 V-0.

$5.0866Ref. price · indicative, final on quote
68022-272 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

68022-272 Technical Specifications
ParameterValue
SeriesBERGSTIK® II
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Voltage rating110V
Current rating5A
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.240\" (6.10mm)
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBulk
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions72
Row spacing - mating0.100\" (2.54mm)
Contact length - post0.110\" (2.79mm)
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.318\" (8.08mm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

The Amphenol ICC (FCI) 68022-272 is a 72-position, dual-row member of the BERGSTIK® II series of unshrouded male pin headers. The 72 circuits are loaded in two rows with a matching 0.100" row-to-row spacing, giving a dense but routable footprint for backplane or mezzanine card connections.

The 68022-272 mates with any standard 0.100" pitch dual-row receptacle housing that accepts 0.025" square pins — the industry-common BergStik / Dubox / DIL type socket strips. The solder tails are 0.110" (2.79mm) long, sized for standard 0.062" PCBs with through-hole soldering; the right-angle bend places the tails in a single row for wave-solder compatibility.
