The 100.0 µin mating thickness is generous for a tin finish — it handles moderate insertion cycles without the fretting risk of thinner tin layers. The right-angle mounting puts the post length at 0.305" below the board — enough for standard through-hole soldering on a single-layer or plated-through-hole board. Insulation height is 0.095" above the board surface, keeping the mated stack low. UL94 V-0 rated housing.

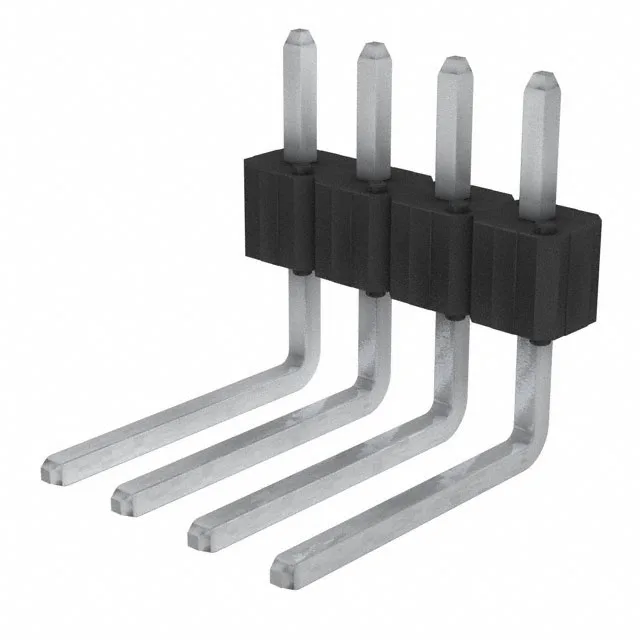

Amphenol FCI 68023-404HLF BergStik II Header, 4 Pos
MPN68023-404HLF
Active
Amphenol FCI BergStik II 68023-404HLF, unshrouded male header, 4 positions, single row, 0.100" (2.54mm) pitch, right-angle through-hole, tin-plated contacts, 5 A, 110 V, UL94 V-0.
$0.4900Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 110V |
| Current rating | 5A |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.095\" (2.41mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
All specifications
| Parameter | Value |
|---|---|
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.305\" (7.75mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.136\" (3.45mm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Product details
Frequently asked questions
What is the closest pin-compatible alternative to 68023-404HLF in this component family?
The base product number 68023 identifies the BERGSTIK II series entry. Pin-compatible alternatives share the same 0.100" pitch, circuit count, and through-hole footprint — confirm the mating half from the same series before substituting.
What is 68023-404HLF's listed style?
Board to Board — designed for board-to-board stacking or mid-plane interconnects in industrial equipment.
What compliance documentation does Amphenol FCI provide for 68023-404HLF?
The listing carries a UL94 V-0 flammability rating on the housing. Specific RoHS, REACH, or UL safety certifications are not listed in the current evidence — confirm with the manufacturer if compliance documentation is required for the procurement specification.
