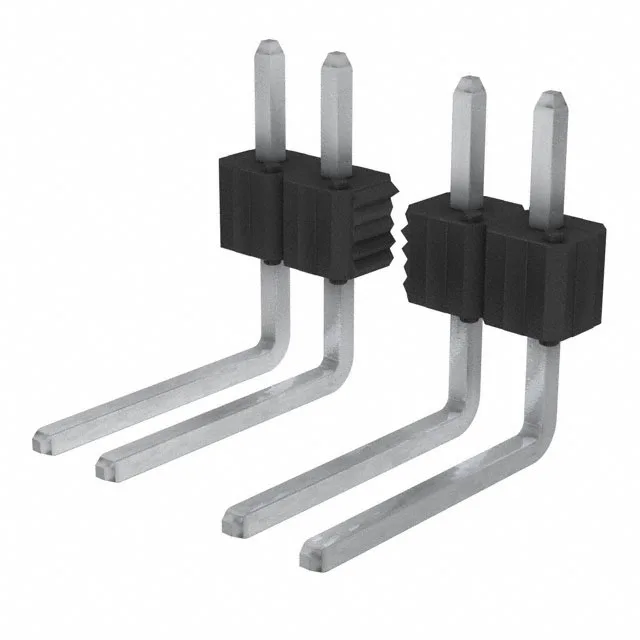

68023-431HLF — Amphenol product photo
Amphenol

68023-431HLF BERGSTIK II Header, 31-Pin, 0.100" Pitch

MPN68023-431HLF
Active

Amphenol ICC (FCI) BERGSTIK® II, 68023-431HLF, unshrouded male pin header, 31 positions, 0.100" (2.54 mm) pitch, single row, through-hole right-angle, tin-plated contacts, UL94 V-0.

$0.5034Ref. price · indicative, final on quote
68023-431HLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

68023-431HLF Technical Specifications
ParameterValue
SeriesBERGSTIK® II
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Voltage rating110V
Current rating5A
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.095\" (2.41mm)
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBag
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions31
Contact finish - postTin
Contact length - post0.305\" (7.75mm)
Contact finish - matingTin
Contact length - mating0.136\" (3.45mm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

Board Fit and Orientation

The 68023-431HLF: All 31 positions are loaded, so the BOM pin count is exactly the number of circuits the mating half must carry.

Current and Contact Life

The 100 µinch tin plating on the mating face is thick enough for moderate-cycle applications — think a few dozen matings over the product life. The contact material is phosphor bronze, a standard spring alloy that holds up well under repeated insertion without taking a permanent set.

Termination is solder — the 0.305" (7.75 mm) post length provides enough standoff for through-hole soldering on a standard 1.6 mm PCB.

Frequently asked questions

What is the pin count of 68023-431HLF?

31 positions, all loaded, single row.

What is the difference between 68023-431HLF and 68023-431HL?

The suffix 'LF' typically indicates lead-free (RoHS-compliant) plating.

What is a direct replacement for 68023-431HLF?

The BERGSTIK II series includes many 31-position headers with different plating and orientation — verify the pitch, row count, and mounting style before substituting.
