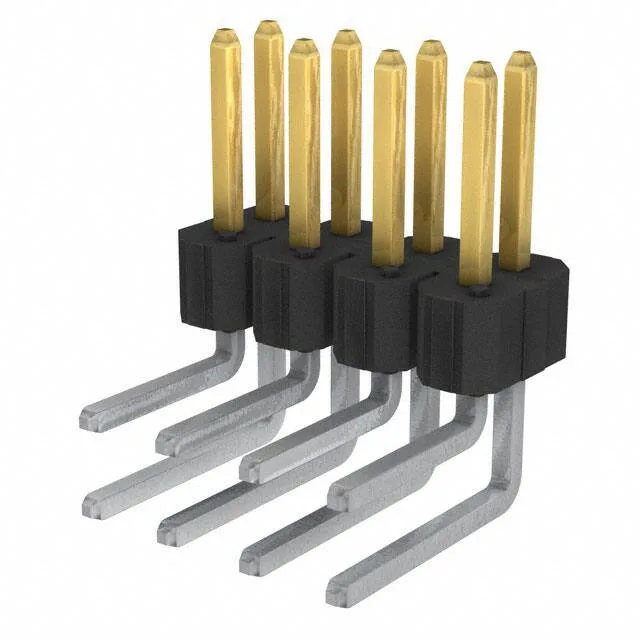

68025-208HLF — Amphenol product photo
Amphenol

68025-208HLF Header – 8-Pos Right-Angle 2.54mm Pitch

MPN68025-208HLF
Active

Amphenol ICC (FCI) BERGSTIK® II, 68025-208HLF, 8-position dual-row unshrouded header, 2.54mm pitch, through-hole right-angle, 15µin gold-plated square pins, UL94 V-0 black housing.

$0.8300Ref. price · indicative, final on quote
68025-208HLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

68025-208HLF Technical Specifications
ParameterValue
SeriesBERGSTIK® II
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.190\" (4.83mm)
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBag
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions8
Row spacing - mating0.100\" (2.54mm)
Contact length - post0.195\" (4.95mm)
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

Board-to-Board Signal Routing with Right-Angle Clearance

The 68025-208HLF: The right-angle solder tails let you route the board edge perpendicular to the mating axis — useful when the z-height above the PCB is tight and the connector needs to sit parallel to the board surface.

What Mates with This Header?

The 0.230" (5.84mm) mating pin length gives enough reach for socket contacts with a typical insertion depth of 3-4mm. No locking mechanism — the retention comes from the socket's friction or an optional latch on the receptacle side.

RoHS compliant per the supplier declaration.

Frequently asked questions

Is the 68025-208HLF RoHS compliant?

Yes, it is listed as RoHS compliant by Amphenol ICC.

What is the mating connector for the 68025-208HLF?

Since the header is unshrouded, the receptacle provides its own alignment and retention — no latch on the header side.
