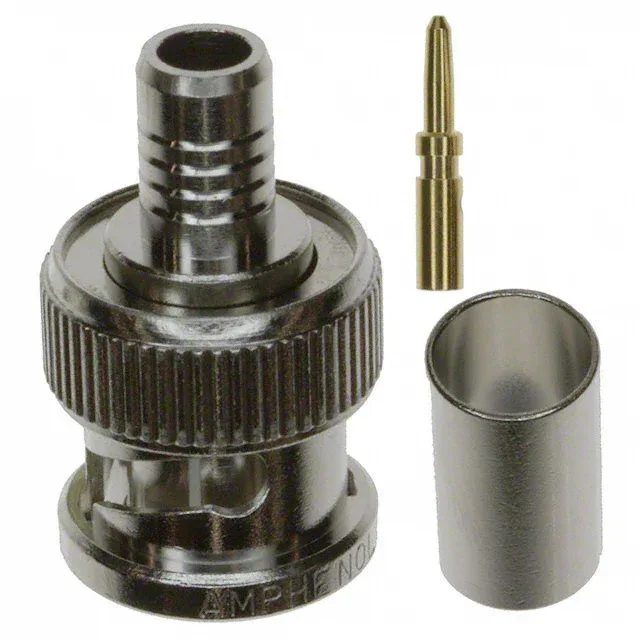

68175-1003 — Amphenol product photo
Amphenol

Amphenol 68175-1003 BNC Plug, 50 Ohm, 2 GHz

MPN68175-1003
Active

Amphenol BNC plug, male pin, 50 Ohm, 2 GHz, crimp or solder contact termination, bayonet lock, free-hanging, 1 port, includes connector, contact, and ferrule.

$5.4800Ref. price · indicative, final on quote
68175-1003 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

68175-1003 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max2 GHz
Cable groupRG-59 Plenum, Belden 1560A, 82259, 88241, 89259, 9259
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp or Solder
Center contact platingGold

Product details

The 68175-1003: This plug mates with standard BNC jacks and receptacles, and is suited for video surveillance, broadcast, test equipment, and RF data links where a reliable 50 Ohm path is needed up to 2 GHz.

This plug is specified for RG-59 Plenum, Belden 1560A, 82259, 88241, 89259, and 9259 cables. The shield is terminated by crimping the included ferrule over the braid; the centre contact can be crimped or soldered.

Environmental and Electrical Ratings

The 500-cycle mating life is typical for field-serviceable BNC connectors — enough for frequent reconnections in test or broadcast setups.

Frequently asked questions

What cables work with 68175-1003?

This BNC plug is designed for RG-59 Plenum, Belden 1560A, 82259, 88241, 89259, and 9259 cables. The included ferrule crimps over the braid; the centre contact accepts crimp or solder termination.

What is the impedance of 68175-1003?

The impedance is 50 Ohm, standard for BNC video and RF interconnects.
