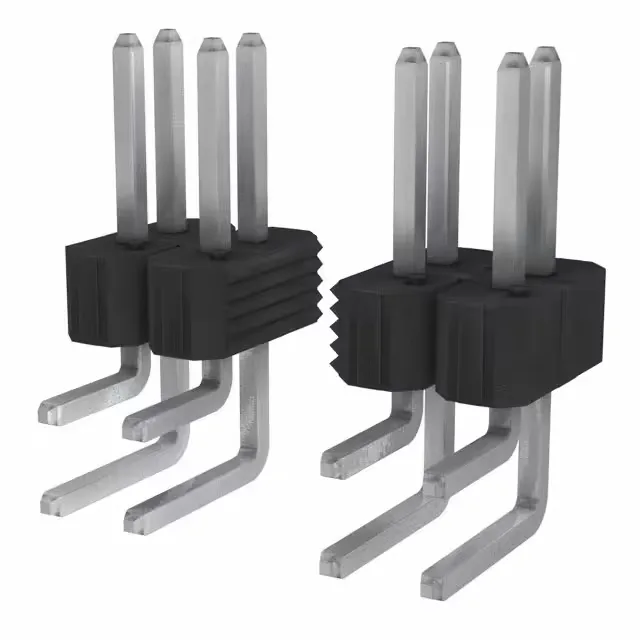

Amphenol FCI BERGSTIK II, 16-position dual-row male pin header, 0.100" (2.54mm) pitch, right-angle through-hole, 5 A per circuit at 110 V, tin-plated phosphor bronze contacts, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 110V |
| Current rating | 5A |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.190\" (4.83mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Parameter | Value |
|---|---|
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.095\" (2.41mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The Amphenol FCI BERGSTIK II 68405-416HLF is a 16-position, dual-row male pin header on a standard 0.100" (2.54mm) pitch.
The 0.100" pitch and 0.100" row spacing are the standard 2.54 mm grid, which means the footprint matches a broad range of existing board layouts and prototyping grids.
Tin contacts are cost-effective for low mating-cycle applications — think a few dozen insertions over the life of the assembly.
68405-416HLF carries an Active lifecycle status per the manufacturer — full production, no end-of-life notice.
The pin pitch is 0.100" (2.54mm) with matching 0.100" row spacing, and the header is a right-angle through-hole mount.
The header is rated 5 A per circuit at 110 V.
The part is listed as RoHS compliant per the manufacturer's specification.
