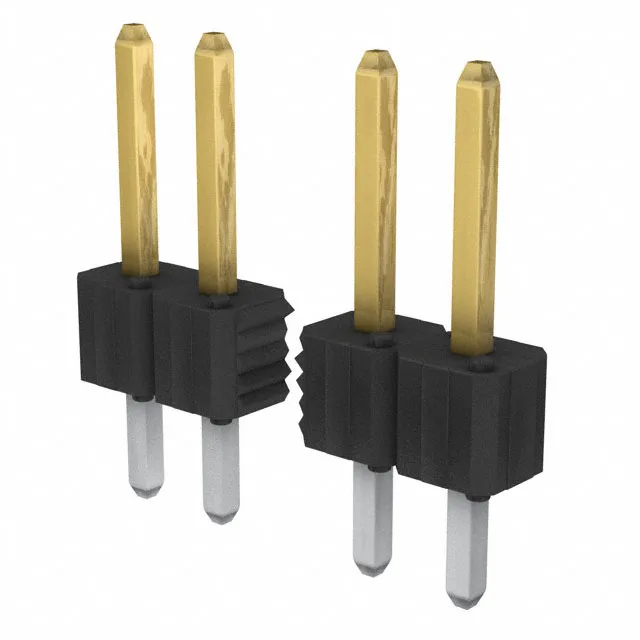

Amphenol ICC (FCI) BERGSTIK II header, order code 68448-218HLF, 10 positions, single row, 0.100" (2.54 mm) pitch, 3 A, gold or GXT mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.450\" (11.43mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 68448-218HLF is the 10-position single-row member of the BERGSTIK II header line, with 9 positions loaded. It carries gold or GXT mating contacts rated 3 A, mates at 0.100" pitch, and terminates through-hole with solder.
The 68448-218HLF carries 10 positions in a single row, with 9 positions loaded — the unloaded position leaves a gap for keying or isolation in the board layout.
RoHS and REACH compliance documentation is available from the manufacturer.
