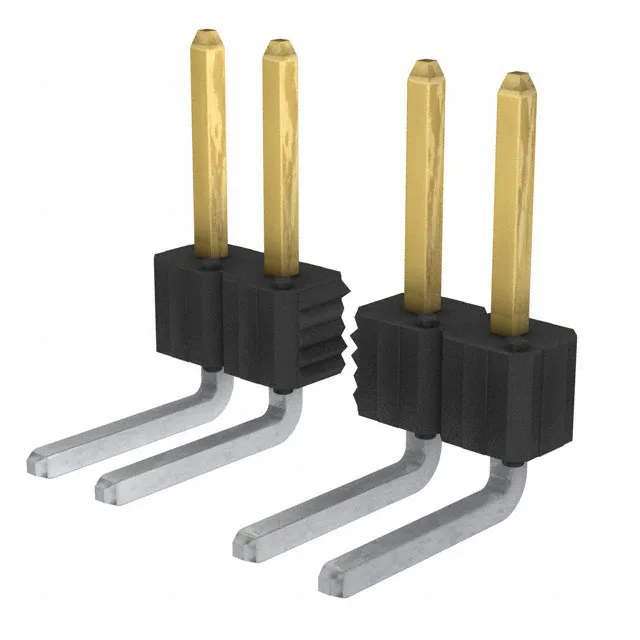

Amphenol ICC (FCI) BERGSTIK® II header, order code 68468-136HLF, 36 positions, single row, 0.100" (2.54mm) pitch, unshrouded, through-hole right-angle, solder termination, male pin, square contact shape.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.095\" (2.41mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 36 |
| Contact length - post | 0.195\" (4.95mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 68468-136HLF is the 36-circuit member of the BERGSTIK® II unshrouded header line from Amphenol ICC (FCI).
Amphenol ICC (FCI) lists the 68468-136HLF as Obsolete. No last-time-buy date or successor order code is recorded.
