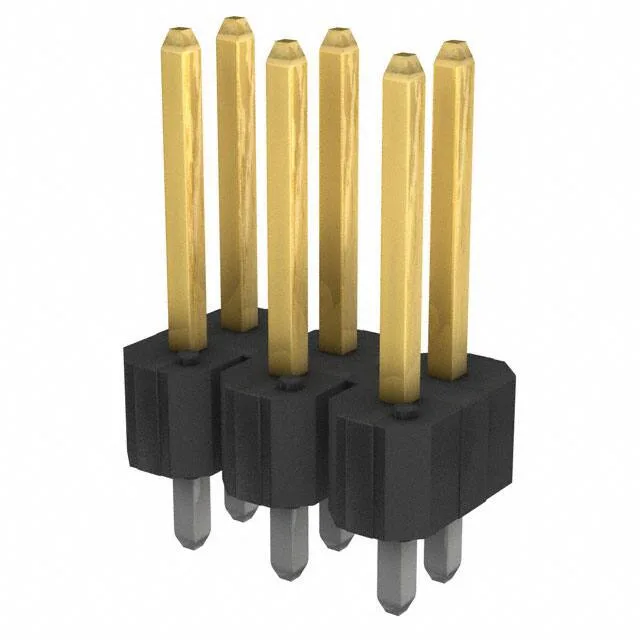

68481-106HLF — Amphenol product photo
Amphenol

68481-106HLF BERGSTIK II Header, 6-Pin, 0.100" Pitch

MPN68481-106HLF
Active

Amphenol ICC (FCI) BERGSTIK® II unshrouded header, 6 circuits, 2 rows, 0.100" (2.54 mm) pitch, through-hole solder termination, 3 A per contact, 30 µinch gold mating finish, UL94 V-0 black housing.

$0.3452Ref. price · indicative, final on quote
68481-106HLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

68481-106HLF Technical Specifications
ParameterValue
SeriesBERGSTIK® II
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typePush-Pull
Current rating3A
Operating temperature-65°C~130°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBag
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions6
Row spacing - mating0.100\" (2.54mm)
Contact length - post0.095\" (2.41mm)
Overall contact length0.480\" (12.19mm)
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.285\" (7.24mm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board Layout Fit: Pitch, Rows, and Footprint

The 68481-106HLF: With 6 positions loaded across two rows, the connector occupies a 3 x 2 pin array.

Contact Interface and Mating Cycles

The push-pull fastening type relies on the receptacle's latch or friction fit — no secondary locking mechanism on the header side.

Temperature Range and Material Rating

Rated for -65°C to 130°C, this header can sit in an outdoor telecom cabinet or an industrial enclosure where the internal ambient cycles between winter cold and equipment heat.

Frequently asked questions

Is 68481-106HLF through hole or surface mount?

Through-hole solder termination. The post length is 0.095" (2.41 mm) for a standard PCB thickness.
