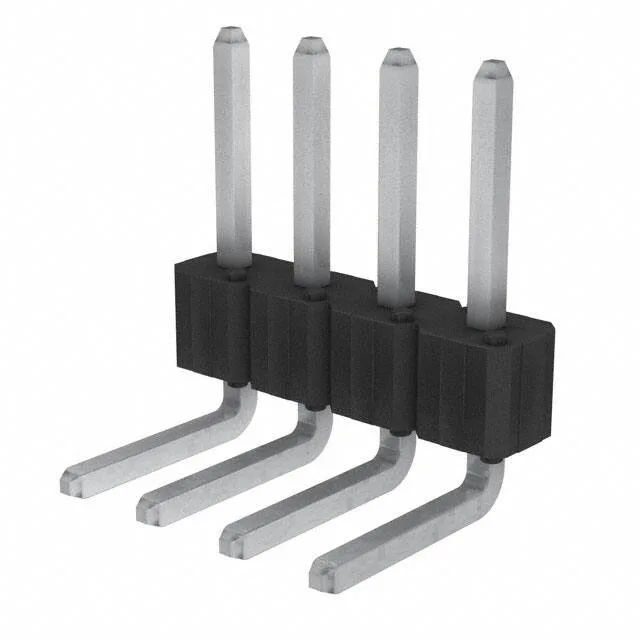

68488-404HLF — Amphenol product photo
Amphenol

68488-404HLF Amphenol ICC (FCI) BergStik II Header, 4 Pos

MPN68488-404HLF
Active

Amphenol ICC (FCI) BergStik II header, order code 68488-404HLF, 4 positions, single row, 0.100" (2.54mm) pitch, 3A, tin-plated mating contacts, through-hole right-angle, solder termination.

$0.7500Ref. price · indicative, final on quote
68488-404HLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

68488-404HLF Technical Specifications
ParameterValue
SeriesBERGSTIK® II
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Current rating3A
Operating temperature-65°C~125°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.095\" (2.41mm)
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBag
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions4
Contact finish - postTin
Contact length - post0.180\" (4.57mm)
Contact finish - matingTin
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

Board-to-board header, 4 positions, 0.100" pitch

The 68488-404HLF: Tin-plated mating contacts rated 3A per circuit, through-hole right-angle termination. Operating temperature range -65°C to 125°C, UL94 V-0 rated black insulation.

Flammability and compliance

Housing material rated UL94 V-0.
