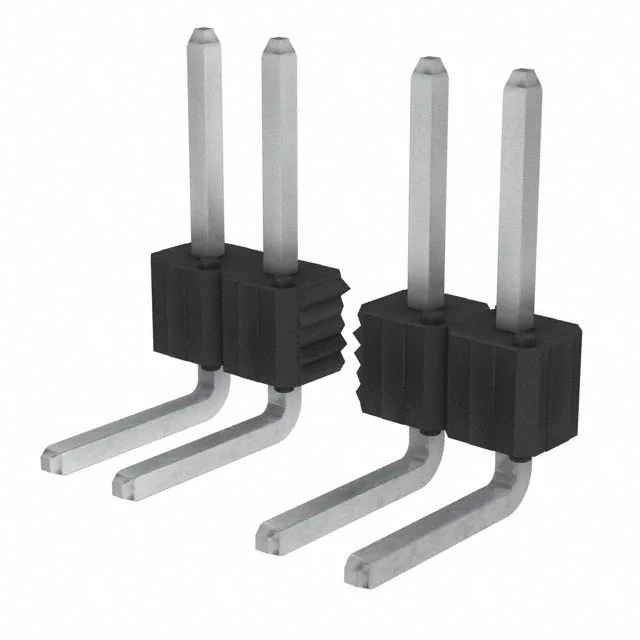

Amphenol ICC (FCI) BERGSTIK® II header, 68488-410HLF, 10 positions, 0.100" (2.54 mm) pitch, unshrouded, right-angle through-hole, tin-plated male pins, UL94 V-0 black housing.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.095\" (2.41mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Parameter | Value |
|---|---|
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.180\" (4.57mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 68488-410HLF: The 0.180" (4.57 mm) post length suits through-hole soldering on boards up to about 1.6 mm thick. Single-row layout means the footprint is a straight line of 10 plated through-holes at 0.100" centers. The right-angle bend keeps the header body low — 0.095" (2.41 mm) insulation height above the board — leaving clearance for components behind the header.
The pitch is 0.100" (2.54 mm) and it is a single-row header with 10 positions loaded.
