Board Layout Fit: Pitch and Pin Count
The 68602-108HLF: The 8 positions, all loaded, give a compact dual-row signal interface without wasting pins.
Position Count Alternatives in the Same Series
The 68602-108HLF sits at 8 positions.

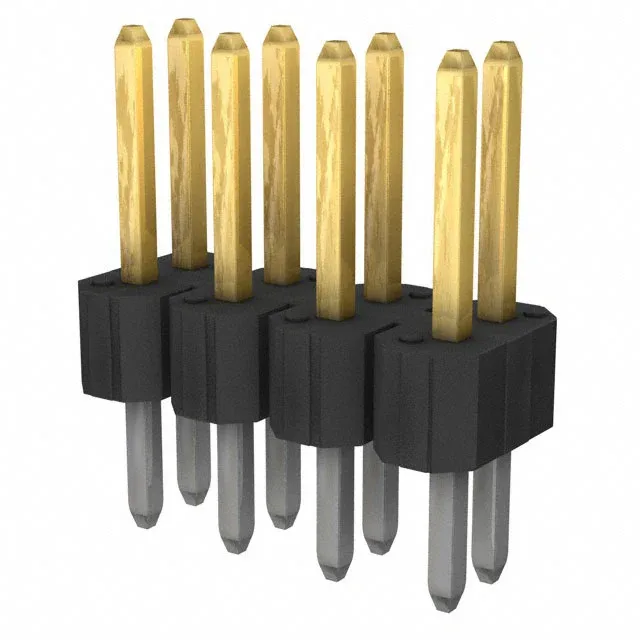

Amphenol ICC (FCI) BERGSTIK® II, 68602-108HLF, unshrouded through-hole header, 8 positions, 2 rows, 0.100" (2.54mm) pitch, 3 A, 30 µinch gold mating finish, UL94 V-0.
$0.7000Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.150\" (3.81mm) |
| Overall contact length | 0.480\" (12.19mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the closest functional alternative to the 68602-108HLF?
The 68602-110HLF is the nearest sibling — same series, pitch, plating, and active status, but with 10 positions instead of 8. For a lower-cost option with reduced gold thickness, the 68602-208HLF offers 15 µinch gold at 8 positions.
Where can I buy the 68602-108HLF?
Availability and current pricing confirmed at quote time.
