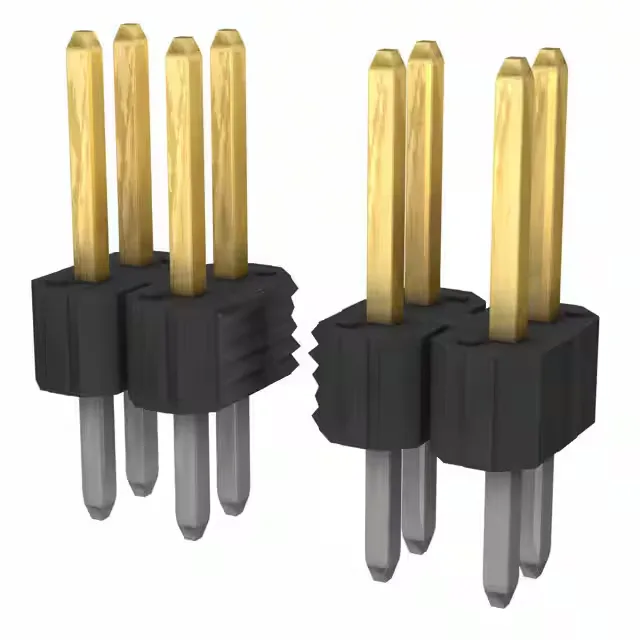

Amphenol ICC (FCI) BERGSTIK® II, 68602-114HLF, 14-position unshrouded header, 0.100" (2.54 mm) pitch, through-hole solder termination, male pin, 3 A, 30 µinch gold mating finish, UL94 V-0 black housing.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Parameter | Value |
|---|---|
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.150\" (3.81mm) |
| Overall contact length | 0.480\" (12.19mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 68602-114HLF: The unshrouded design means the mating receptacle slides directly over the pins without a shell — the 0.230" mating contact length provides enough wipe for a reliable connection in board-to-board or wire-to-board applications.
The mating half is not specified by the manufacturer — select a receptacle with matching circuit count and row spacing.
