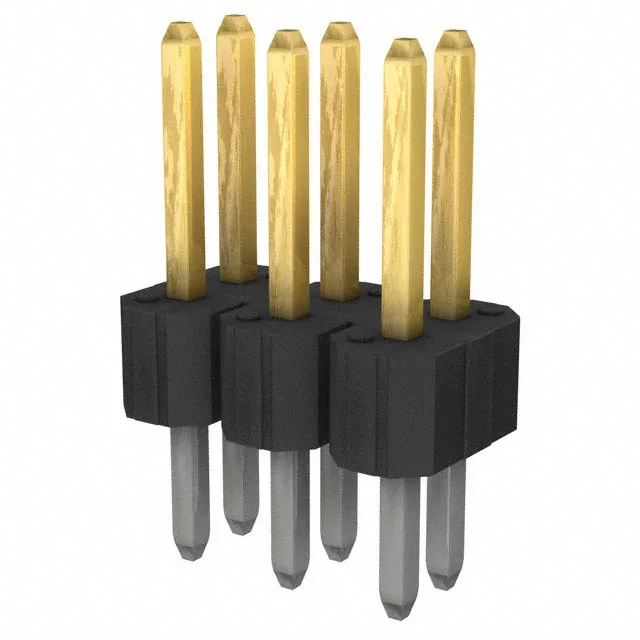

Amphenol ICC (FCI) BERGSTIK® II, 68602-206HLF, 6-position, 2-row, unshrouded header, 0.100" (2.54mm) pitch, through-hole solder termination, gold or GXT™ plated male pins, rated 3 A, UL94 V-0 black housing.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.150\" (3.81mm) |
| Overall contact length | 0.480\" (12.19mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Unshrouded male pins mate with standard 0.100" pitch IDC socket strips or crimp-housing receptacles — the 0.230" (5.84mm) mating length provides a positive wipe.
Yes, it is RoHS compliant.
The 68602-208HLF (8 positions) and 68602-210HLF (10 positions) share the same pitch, row count, current rating, and plating. For higher mating-cycle life, the 68602-108HLF offers 30.0µin gold on 8 positions.
