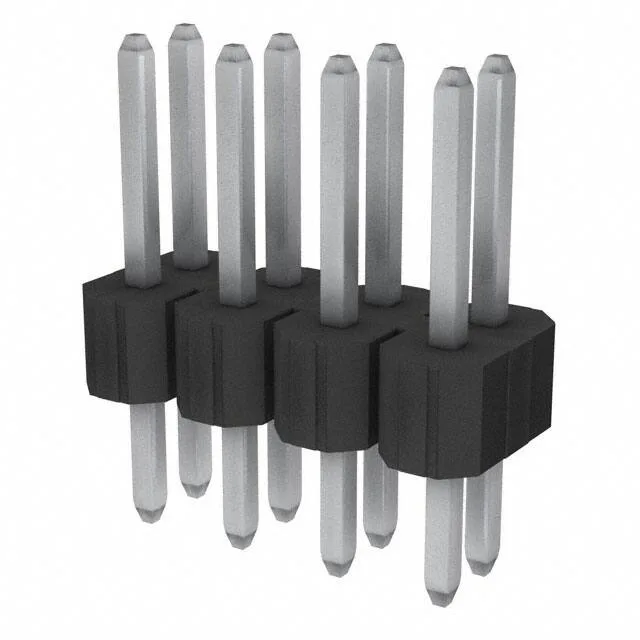

68602-408HLF — Amphenol product photo
Amphenol

68602-408HLF Amphenol ICC BERGSTIK® II Header, 8 Pos, 2.54mm

MPN68602-408HLF
Active

Amphenol ICC (FCI) BERGSTIK® II, 68602-408HLF, Board to Board, Header, Male Pin, Solder, Through Hole, 8 Positions, 0.100" (2.54mm) Pitch, Tin Mating Finish, 3A

$0.5400Ref. price · indicative, final on quote
68602-408HLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

68602-408HLF Technical Specifications
ParameterValue
SeriesBERGSTIK® II
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typePush-Pull
Current rating3A
Operating temperature-65°C~130°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBag
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions8
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.150\" (3.81mm)
Overall contact length0.480\" (12.19mm)
Contact finish - matingTin
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

Tin vs Gold: Plating Choice for the BOM

The 68602-408HLF uses a 100 µinch tin mating finish. For higher mating-cycle requirements, the same 8-position dual-row footprint is available with gold plating: the 68602-108HLF carries 30 µinch gold, and the 68602-208HLF carries 15 µinch gold. Gold is the choice for corrosive environments or applications requiring hundreds of mating cycles; tin is adequate for low-cycle, cost-sensitive builds.

It is RoHS compliant and available for new designs and ongoing production.

In vibration-prone environments, a secondary retention method (e.g., a wire-to-board latch on the receptacle side) is recommended.

Frequently asked questions

What is the mating connector for 68602-408HLF?

The 68602-408HLF is an unshrouded male pin header. The push-pull retention means no locking latch; for vibration resistance, choose a receptacle with a secondary latch.

Can I replace 68602-408HLF with a gold-plated version?

Yes, the same 8-position dual-row footprint is available with gold plating: 68602-108HLF (30 µinch gold) and 68602-208HLF (15 µinch gold). The gold versions are pin-compatible and differ only in mating cycle life and corrosion resistance.
