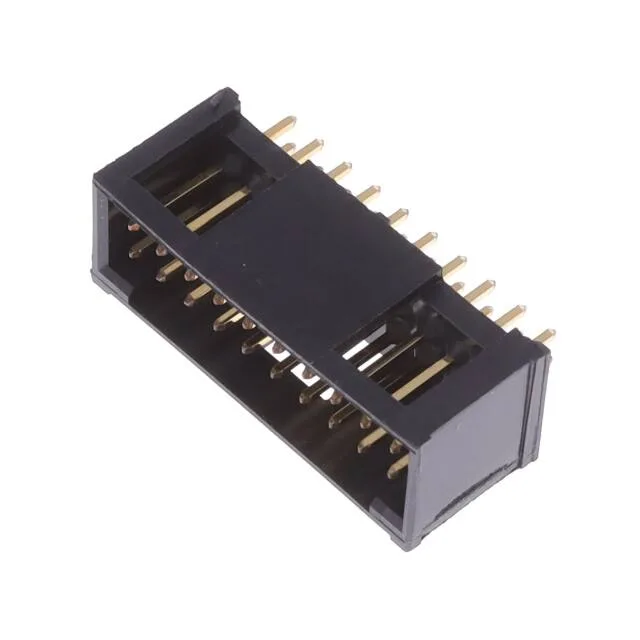

Amphenol ICC (FCI) 68664-008LF, Board to Cable/Wire header, 20 positions, 0.100" (2.54mm) pitch, shrouded 4-wall, through-hole solder, male pin, square contact, detent lock, 30.0µin gold mating finish, UL94 V-0, RoHS, Active.
| Parameter | Value |
|---|---|
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Contact material | Phosphor Bronze Alloy |
| Insulation color | Black |
| Insulation height | 0.440\" (11.18mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.315\" (8.00mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Compared to the 69168-114 (14 positions, friction lock, 2-wall shroud), the 68664-008LF offers 20 positions and a 4-wall shroud with detent lock — a more robust mechanical retention for higher pin-count harnesses. The 52601-G20-4LF (Quickie™ series) shares the same 20 positions and 4-wall shroud but uses a push-pull fastening; the detent lock on the 68664-008LF provides a more positive tactile engagement.
Yes, the 68664-008LF is RoHS Compliant per the manufacturer's listing.
