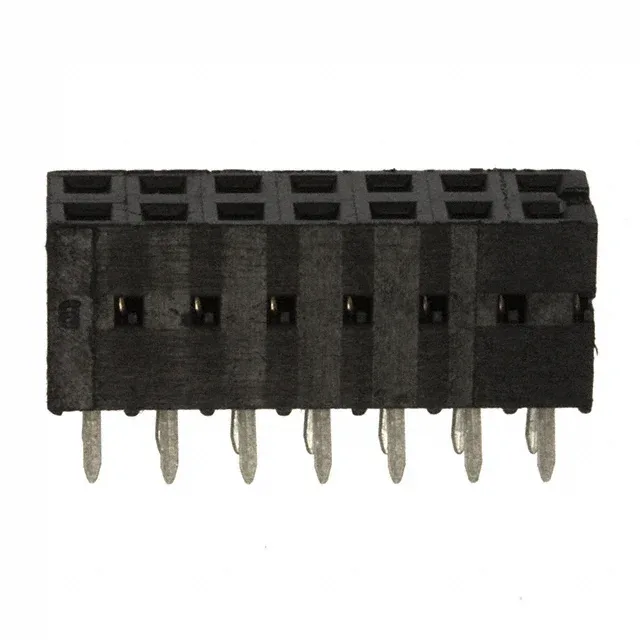

68683-307LF — Amphenol product photo
Amphenol

68683-307LF Amphenol ICC (FCI) Dubox™ Female Socket Header

MPN68683-307LF
Active

Amphenol ICC (FCI) Dubox™, 68683-307LF, board-to-board receptacle, 14 positions, dual-row, 0.100" (2.54 mm) pitch, through-hole solder termination, 30 µinch gold mating contact finish, UL94 V-0 housing.

$2.5600Ref. price · indicative, final on quote
68683-307LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

68683-307LF Technical Specifications
ParameterValue
SeriesDubox™
GenderFemale Socket
Mounting typeThrough Hole
Connector typeReceptacle
Fastening typePush-Pull
Voltage rating1000V
Operating temperature-65°C~125°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.276\" (7.00mm)
Insulation materialPolyphenylene Sulfide (PPS), Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTube
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Telecommunications
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions14
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.115\" (2.92mm)
Contact finish - matingGold
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

14-Position Dual-Row Dubox™ Receptacle

The tin-plated solder tails (100 µinch) wet well during wave solder and keep the BOM cost down. Rated for 1000 V and housed in a glass-filled PPS insulator rated UL94 V-0, this receptacle holds up in high-voltage, flame-rated enclosures.

Position Count vs. Sibling 68683-308LF

The 68683-307LF carries 14 positions loaded; the sibling 68683-308LF is a 16-position version in the same dual-row, 0.100" pitch layout. If your BOM calls for 16 circuits, the 68683-308LF is the direct swap without requalifying the housing or plating.

It is RoHS compliant.

Frequently asked questions

What is the closest functional equivalent to 68683-307LF?

The 68683-308LF is the closest sibling — a 16-position version with identical pitch, plating, and housing. If your design needs 14 positions, the 68683-307LF is the exact fit; the 68683-308LF is a drop-in for a 16-circuit BOM.

How can I order 68683-307LF or check stock?

Availability and current pricing confirmed at quote time.
