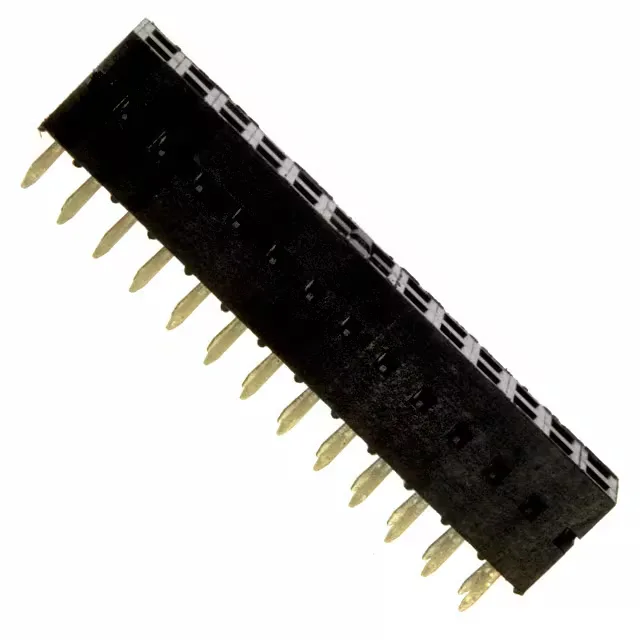

Amphenol ICC (FCI) Dubox™ 68683-313LF, 26-position dual-row female socket receptacle, 0.100" (2.54mm) pitch, through-hole solder termination, 30µin gold mating finish, UL94 V-0 housing.
| Parameter | Value |
|---|---|
| Series | Dubox™ |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 1000V |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.276\" (7.00mm) |
| Insulation material | Polyphenylene Sulfide (PPS), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tube |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 26 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.115\" (2.92mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Compared to the 20-position 68683-310LF, the 68683-313LF adds six circuits in the same dual-row layout — a direct footprint match for designs that need more I/O without changing the connector series. The 0.100" row spacing keeps the board routing consistent with standard 2.54mm grid layouts. The 0.115" (2.92mm) post length suits typical 1.6mm PCB thickness.
