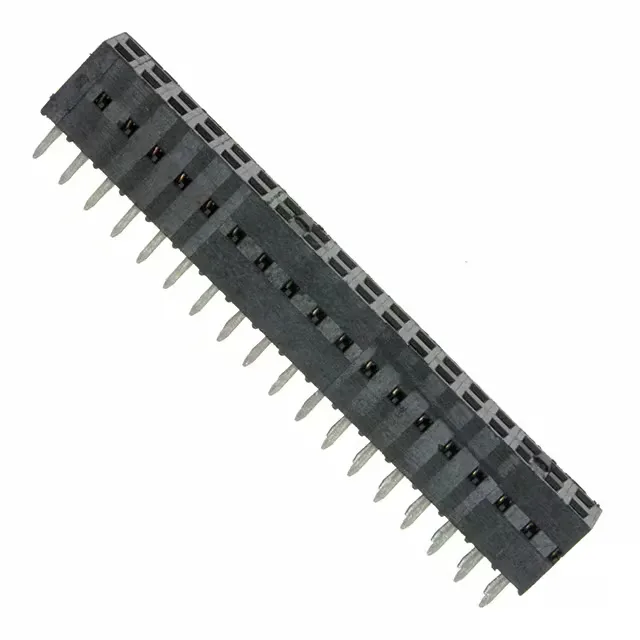

68683-318LF — Amphenol product photo
Amphenol

68683-318LF Amphenol ICC Dubox™ 36-Position Female Socket

MPN68683-318LF
Active

Amphenol ICC (FCI) Dubox™ series, 68683-318LF: board-to-board receptacle, 36 positions, 2 rows, 0.100" (2.54mm) pitch, through-hole solder termination, gold mating contacts, 1000V rating, UL94 V-0 housing.

$6.1100Ref. price · indicative, final on quote
68683-318LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

68683-318LF Technical Specifications
ParameterValue
SeriesDubox™
GenderFemale Socket
Mounting typeThrough Hole
Connector typeReceptacle
Fastening typePush-Pull
Voltage rating1000V
Operating temperature-65°C~125°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.276\" (7.00mm)
Insulation materialPolyphenylene Sulfide (PPS), Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTube
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Telecommunications
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions36
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.115\" (2.92mm)
Contact finish - matingGold
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board-to-Board Receptacle, 36 Circuits, 0.100" Pitch

The glass-filled PPS housing (UL94 V-0) holds up to the reflow profile and provides flame resistance for equipment inside an enclosure. The tin-plated posts (100.0µin) solder reliably and offer a cost-effective termination surface.

Voltage and Temperature Envelope

Rated at 1000V, this receptacle carries signal-level and moderate power circuits in the same connector body — useful for mixed-voltage backplanes or industrial I/O where 48V or 120V lines share a header.

Frequently asked questions

What is the mating header for 68683-318LF?

This is a Dubox™ receptacle designed to mate with a 0.100" pitch, dual-row pin header from the same series.

Is 68683-318LF RoHS compliant?

Yes, the part is RoHS compliant per the manufacturer's listing.
