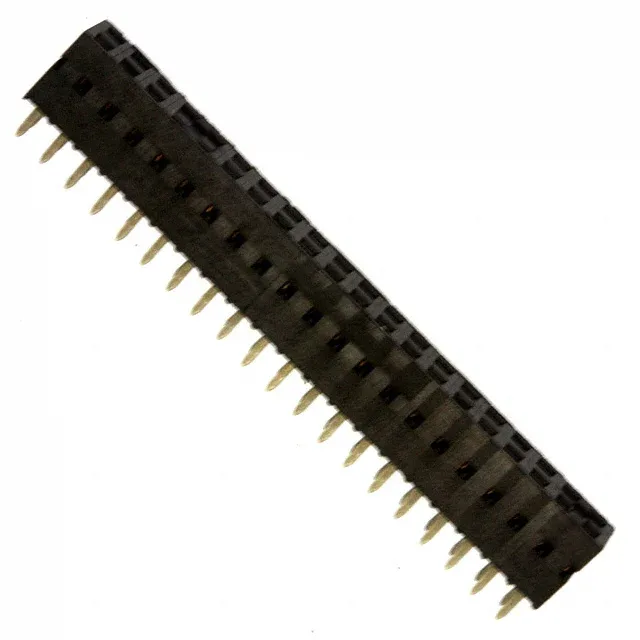

68683-320LF — Amphenol product photo
Amphenol

68683-320LF Amphenol ICC Dubox™ 40-Position Female Socket

MPN68683-320LF
Active

Amphenol ICC (FCI) Dubox™ 68683-320LF, 40-position dual-row female socket receptacle, 0.100" (2.54 mm) pitch, through-hole solder termination, 30 µinch gold mating face, 1000 V rating, UL94 V-0, tube package.

$6.8100Ref. price · indicative, final on quote
68683-320LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

68683-320LF Technical Specifications
ParameterValue
SeriesDubox™
GenderFemale Socket
Mounting typeThrough Hole
Connector typeReceptacle
Fastening typePush-Pull
Voltage rating1000V
Operating temperature-65°C~125°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.276\" (7.00mm)
Insulation materialPolyphenylene Sulfide (PPS), Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTube
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Telecommunications
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions40
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.115\" (2.92mm)
Contact finish - matingGold
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

The 68683-320LF: The post side is tin-plated at 100 µinch, which wets well during wave solder.

Voltage Headroom and Flame Rating

Rated 1000 V — the creepage distance between rows is generous for industrial bus voltages.

This is a push-pull (unlatching) receptacle — it mates with any Dubox™ or compatible 0.100" pitch square-pin header. The through-hole solder termination requires no press-fit tooling; just insert and wave-solder.

The 40-position version gives you four extra circuits in the same row spacing, which matters if your board layout needs that additional I/O without widening the connector footprint.

Frequently asked questions

Is 68683-320LF RoHS compliant?

Yes, 68683-320LF is RoHS compliant.
