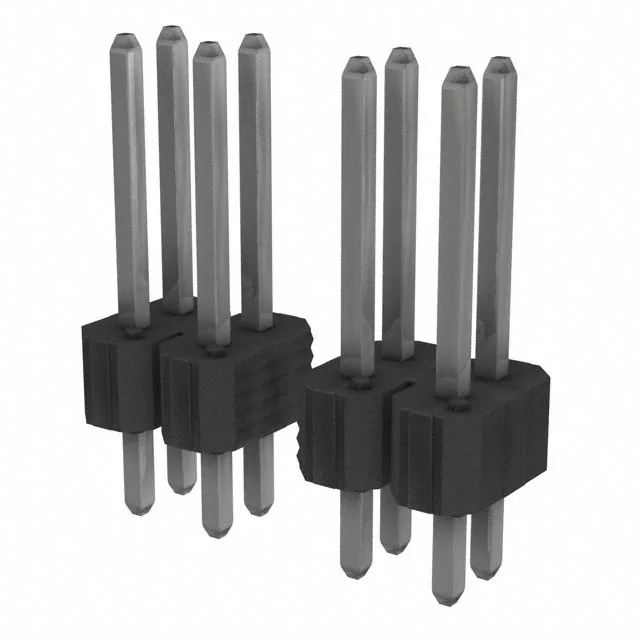

68691-456HLF BERGSTIK® II Header, 56-Pos, 0.100" Pitch

MPN68691-456HLF
Active

Amphenol ICC (FCI) BERGSTIK® II, 68691-456HLF, unshrouded male pin header, 56 circuits, dual-row, 0.100" (2.54 mm) pitch, through-hole solder termination, tin-plated contacts, UL94 V-0 black housing.

$0.8844Ref. price · indicative, final on quote
68691-456HLF datasheet
StockContact for availability
Lead time3-5 Days wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

68691-456HLF Technical Specifications
ParameterValue
SeriesBERGSTIK® II
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typePush-Pull
Current rating3A
Operating temperature-65°C ~ 130°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBag
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions56
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.120\" (3.05mm)
Overall contact length0.538\" (13.67mm)
Contact finish - matingTin
Contact length - mating0.318\" (8.08mm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

Board Fit and Routing Reality

The 68691-456HLF: With all 56 positions loaded, the board footprint spans 28 positions per row, so the overall length is roughly 2.8 inches (71 mm) along the mating axis. For a 56-position connector, this increases the risk of misalignment during blind mating; a shroud or guide pin would help in high-vibration or high-cycle applications.

Current and Thermal Budget

Rated 3 A per contact. In a typical signal application (0.5–1 A per pin), the margin is generous.

Packaged in a bag — not tape-and-reel, so pick-and-place assembly requires manual or tube feeding.

Frequently asked questions

Is 68691-456HLF obsolete?

No — the lifecycle status is Active. No end-of-life notice or successor has been issued by Amphenol ICC (FCI).
