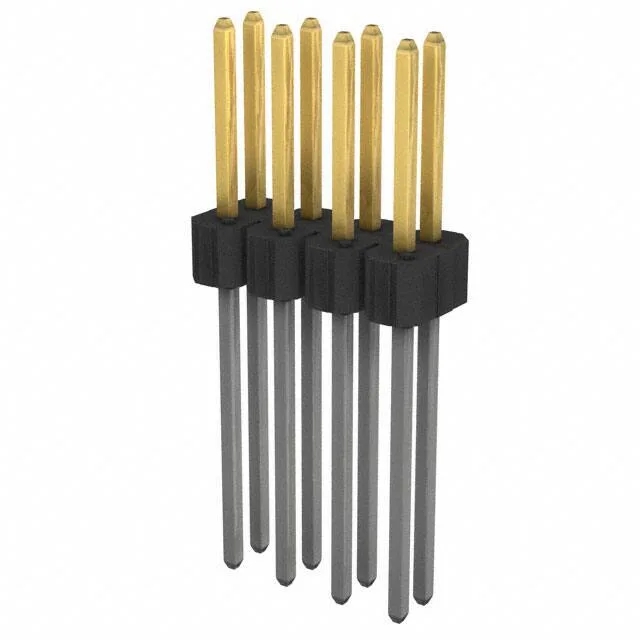

Amphenol ICC (FCI) BERGSTIK® II header, order code 68693-108HLF, 8 positions, dual row, 0.100" (2.54 mm) pitch, 3 A, gold or Gold, GXT™ mating contacts, through-hole, solder termination.
68693-108HLF Amphenol ICC (FCI) BERGSTIK II Header
MPN68693-108HLF
Active
Amphenol ICC (FCI) BERGSTIK® II header, order code 68693-108HLF, 8 positions, dual row, 0.100" (2.54 mm) pitch, 3 A, gold or Gold, GXT™ mating contacts, through-hole, solder termination.
$1.5300Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.520\" (13.21mm) |
| Overall contact length | 0.938\" (23.83mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What compliance documentation is available for 68693-108HLF?
The header carries a UL 94 V-0 flammability rating. RoHS and REACH compliance documentation is available from the manufacturer.
