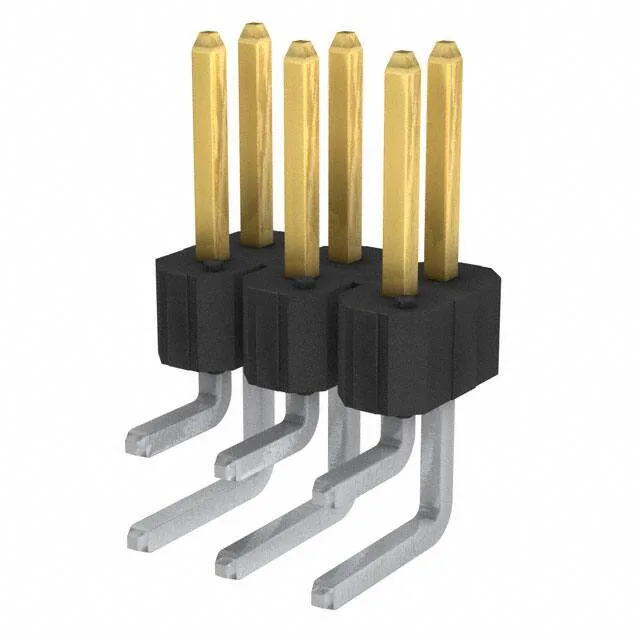

Board-to-Board Header, 6 Positions, 0.100" Pitch
It uses a 0.100" (2.54 mm) pitch with matching 0.100" row spacing, making it footprint-compatible with standard 0.100" grid layouts. The 30.0 µin (0.76 µm) gold or GXT plating on the mating surface provides corrosion resistance and supports repeated mating cycles — a good match for field-serviceable or test-point connections where the connector sees more than a few mate-unmate events.
Positioning in the BERGSTIK II Series
The 68695-106HLF sits in the BERGSTIK II family as a 6-position, dual-row, right-angle variant. Against a straight through-hole sibling like the 68695-106HLF's vertical counterpart (same 6 positions, same pitch), the right-angle orientation changes the board footprint and the mating axis — the 68695-106HLF routes the connector parallel to the board, which can save z-height in a tight enclosure but requires clearance on the board edge for the mating half. The 0.090" (2.29 mm) post length is short, designed for standard PCB thicknesses; verify the board thickness and solder fillet clearance before layout.
